Boiler reheater inlet isolation valve SD61H-P3540 for Water pressure test

Short Description:

Reheater isolation valve SD61H-P3540 has interchangeable plugging plate and guide sleeve, which can be used for water pressure test and pipeline.


Product Detail

Description

SD61H-P3540 isolation valve is a special valve designed for thermal power generating units. It is mainly used for boiler reheater inlet and outlet steam pipes as an isolation device during water pressure test. Its core function is to ensure that the system is sealed reliably during the static water pressure test. After the test, it can be converted to pipeline use by replacing internal components, realizing the economy and convenience of multiple water pressure tests.

Isolation Valve SD61H-P3540 Features

  • High reliability: Reduce the risk of leakage through surfacing of stainless steel sealing surfaces and self-tightening structural design.
  • Economical: Modular design reduces replacement costs and supports repeated use after multiple water pressure tests.
  • Wide adaptability: Covers a variety of materials and pressure levels to meet the configuration requirements of different units.

Application

The Boiler reheater inlet isolation valve SD61H-P3540 is widely used in boiler systems in the power, metallurgy, chemical and other industries:

  • Primary air/secondary air system of thermal power plant boiler
  • Return air monitoring of fluidized bed boiler
  • Blast furnace air supply pipeline of steel plant
  • Exhaust gas treatment device of chemical plant

Installation and commissioning

1. Install in the direction of the valve body flow arrow to ensure the correct flow of the medium.
2. Check the integrity of the O-ring before installing the plug to avoid seal failure.
3. After the hydrostatic test, the components need to be cleaned and stored to prevent rust.
4. Damage to the sealing surface can be repaired and re-tested for hydrostatic test.

Reheater isolation valve SD61H-P3540 Details Parts

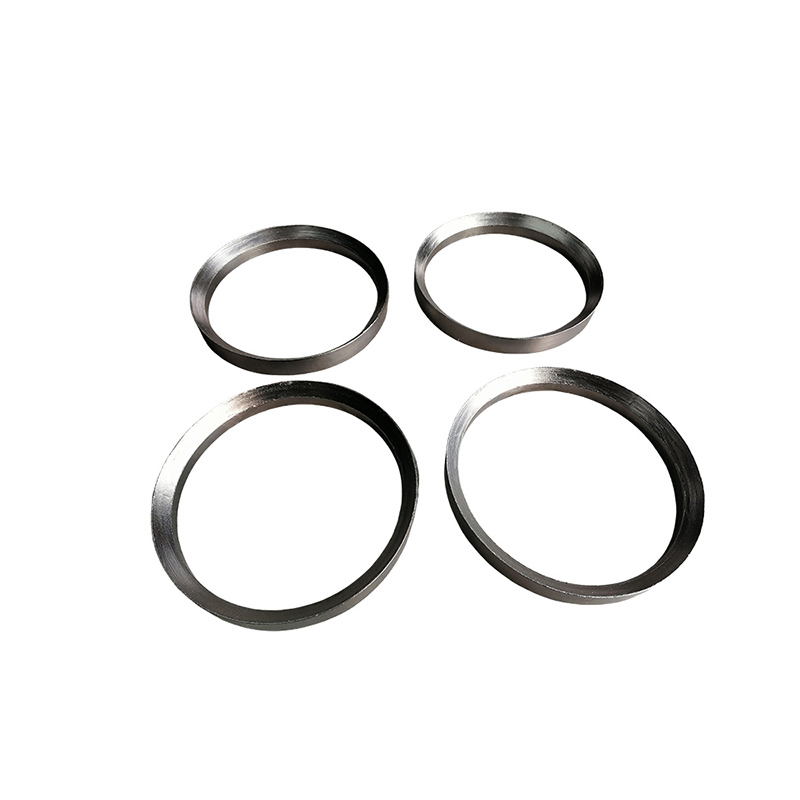

Boiler reheater inlet isolation valve SD61H-P3540 seal ring Boiler reheater inlet isolation valve SD61H-P3540 Boiler reheater inlet isolation valve SD61H-P3540 Boiler reheater inlet isolation valve SD61H-P3540 seal ring
