Product Description
Cellulose filter element DP903EA10V/-W is a high-efficiency precise filter element designed for steam turbine fire-resistant oil regeneration device. It is mainly used to remove solid particles, colloidal impurities and pollutants in fire-resistant oil system, ensure oil cleanliness and extend equipment service life. Its core function is to improve oil stability and prevent system failure caused by pollution. It is widely used in steam turbine lubrication and hydraulic systems in the fields of power, petrochemical, metallurgy, etc.
Structure of Cellulose precise filter DP903EA10V/-W
• Folding structure: adopts multi-layer folding design to significantly increase the filtration area, improve the dirt holding capacity and reduce the pressure difference.
• Filter layer material: mainly high-precision glass fiber, with high temperature resistance, acid and alkali resistance, suitable for complex working conditions.
• Frame and support: stainless steel perforated plate frame, compressive strength of 21MPa, to ensure the stability of the filter element structure under high pressure environment.
Application scenarios
The Cellulose filter element DP903EA10V/-W is widely used in the following industrial scenarios:
• Steam turbine fire-resistant oil regeneration device: removes aging products and oxidized impurities in the oil to maintain oil performance.
• Hydraulic system: protects precision valves and pump bodies from particle wear, such as steam turbine matching use.
• Industrial lubrication system: suitable for oil filtration in key parts such as gearboxes and bearings.
Maintenance
• Regular monitoring: It is recommended to use an oil cleanliness tester to evaluate the filter element status. If the plugging pressure difference exceeds 0.35MPa, it needs to be replaced immediately.
• Safe operation: Before replacement, the oil source needs to be turned off and the pressure needs to be released to avoid residual impurities from contaminating the system; pay attention to the direction of the sealing ring during installation to ensure no leakage.

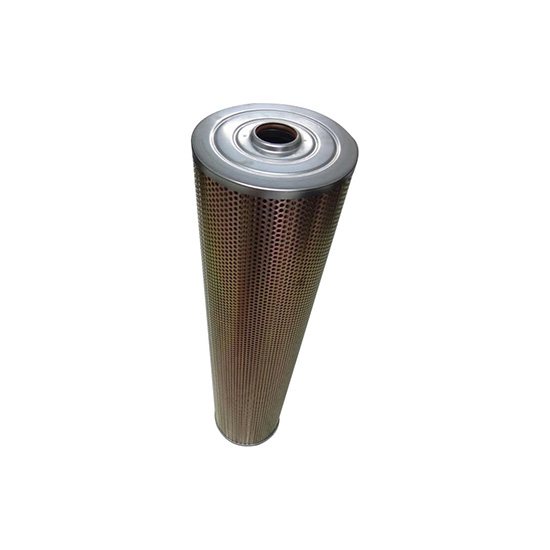

Cellulose filter element DP903EA10V/-W Details
