Product Description
The JLX-30 fine filter element is a core filter element designed for hydraulic systems, especially for online purification of steam turbine EH oil (fire-resistant oil) systems. The filter element effectively intercepts metal wear particles, rubber debris, dust and other pollutants in the oil to ensure the cleanliness of EH oil, thereby ensuring the stable operation of key components such as the turbine speed control system and servo valve, and extending the service life of fire-resistant oil.
Product Features of Hydraulic fine filter JLX-30
• High-precision filtration: The filter element adopts a multi-layer composite filter material structure to effectively intercept tiny particles and meet the cleanliness requirements of EH oil NAS level 6 and above.
• Material compatibility: The filter material has been specially treated to be compatible with the chemical properties of EH oil to avoid secondary contamination caused by material corrosion or swelling.
• Structural optimization: The folding design is adopted to increase the effective filtration area, reduce pressure loss, and improve circulation efficiency; the stainless steel frame and corrosion-resistant sealing ring ensure long-term stable operation.
Application scenarios
The hydraulic oil filter JLX-30 is widely used in the following industrial scenarios:
• Steam turbine EH oil system: used for online filtration at key nodes such as the main oil pump outlet and return oil pipeline, protecting precision components such as servo valves and oil pumps from particle wear.
• Power plant maintenance: suitable for EH system refueling, bypass circulation filtration during operation, and oil purification before system startup.
• Industrial field expansion: high-precision filtration requirements for hydraulic lubrication systems in industries such as metallurgy, petrochemicals, and railways.
Maintenance
• Regular monitoring: It is recommended to use an oil cleanliness tester to evaluate the filter element status. If the plugging pressure difference exceeds 0.35MPa, it needs to be replaced immediately.
• Safe operation: Before replacement, the oil source needs to be turned off and the pressure needs to be released to avoid residual impurities from contaminating the system; pay attention to the direction of the sealing ring during installation to ensure no leakage.

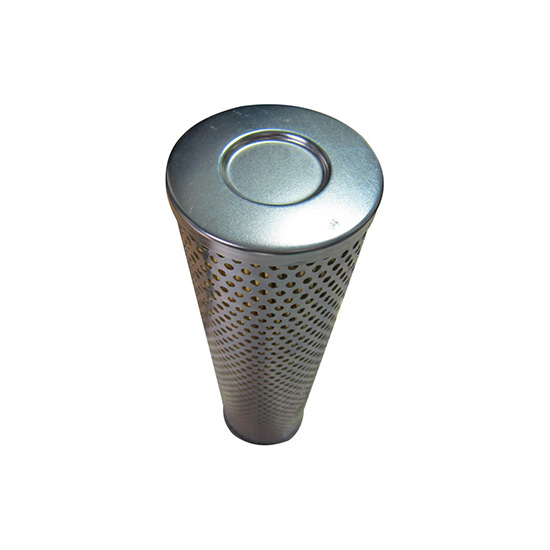

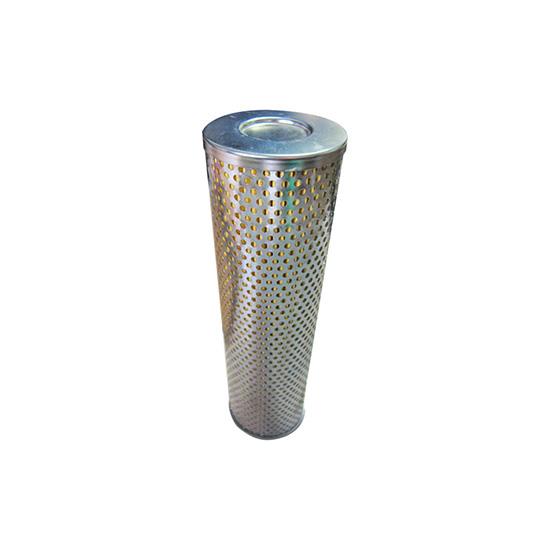

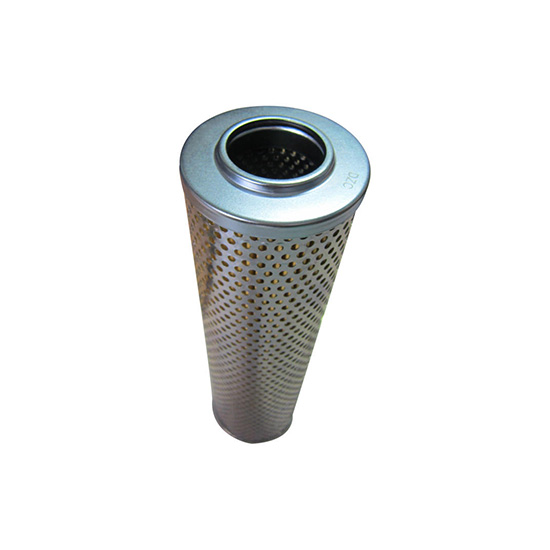

EH oil fine filter JLX-30 Details
