The EH oil regeneration filter ZX-80 will not release metal ions, so it will not react with the phosphate ester to produce gel like phosphate metal salts, which can filter out the metal ions (Ca, Mg, Na, Fe) generated by the use of diatomite filters in the phosphate ester fire-resistant oil. And maintain the content of various metal ions in the fire-resistant oil below 10ppm.
Specifications
| Working medium | fire-resistant oil |
| Filtering method | external pressure type |
| Skeleton material | stainless steel |
| Sealing ring material | fluororubber |
| Raw water pressure | 0.85KG/c ㎡ |
| Working temperature | 0-100 ℃ |
| Acid removal performance | ≤0.08 mgKOH/g |
Reminder: If you have any questions, please do not hesitate to contact us, and we will patiently answer them for you.
ZX-80 performance parameters
1. All stainless steel structure, with a working pressure of up to 1.0MPa, will not rupture and will not cause pollution.
2. The acid removal capacity is strong, 700% higher than that of diatomite, 250% higher than that of Activated alumina and modified alumina. And can maintain the acid value of phosphate ester fire-resistant fuel in the EHC system below 0.08.
3. Improve the resistivity of phosphate ester fire-resistant fuel to avoid electrochemical corrosion of components.
4. It will not release metal ions, so it will not react with the phosphate ester to produce gel like phosphate metal salts, and will not produce servo 5. It can filter out the metal ions (Ca, Mg, Na, Fe) generated by the use of diatomite filters in the phosphate ester fire-resistant oil. And maintain the content of various metal ions in the fire-resistant oil below 10ppm.

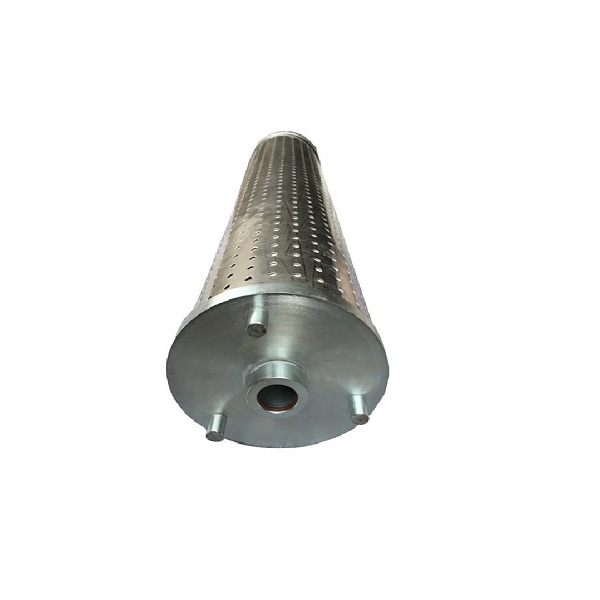

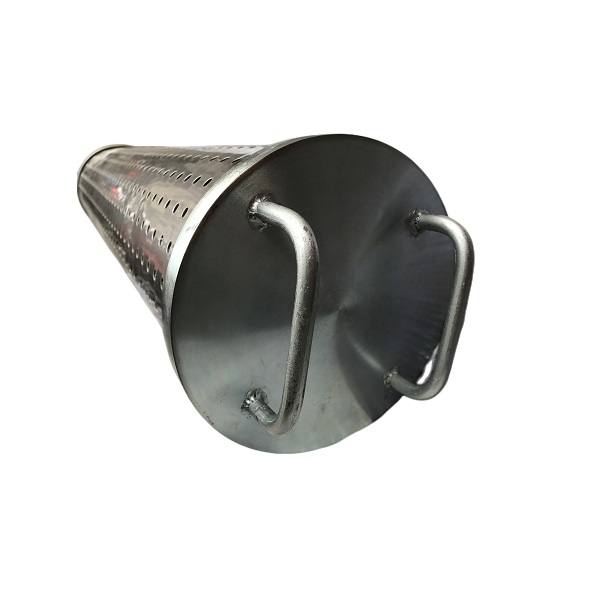

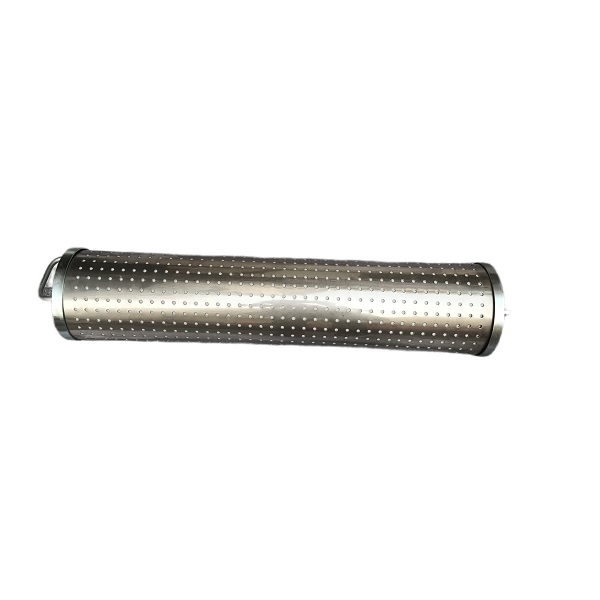

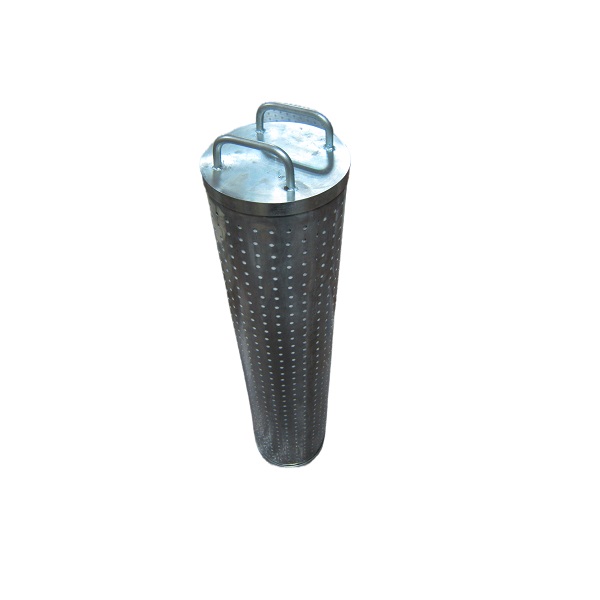

EH oil regeneration filter ZX-80 Show
