The generator cover manual sealant injector KH-32 is a lever-type manual glue injection. The setting of the filling tube can easily and quickly fill the sealant, and there is no need to worry about getting your hands dirty, or the sealant is mixed with impurities, sand, etc., and the sealant is not wasted when using it. This glue injection tool is small and compact for easy storage.

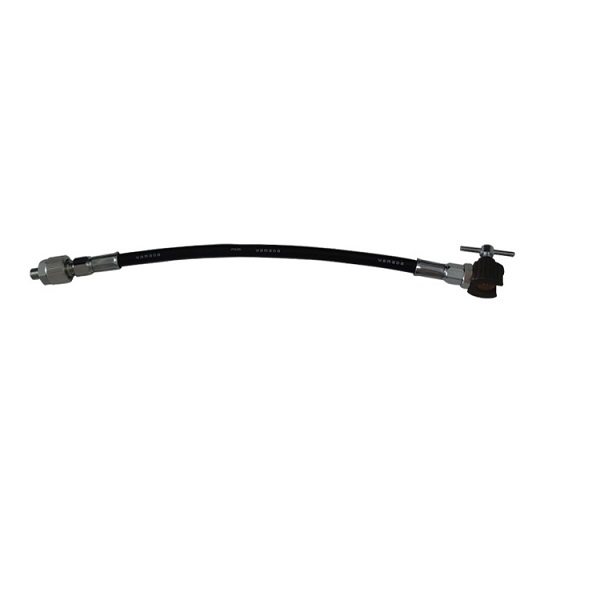

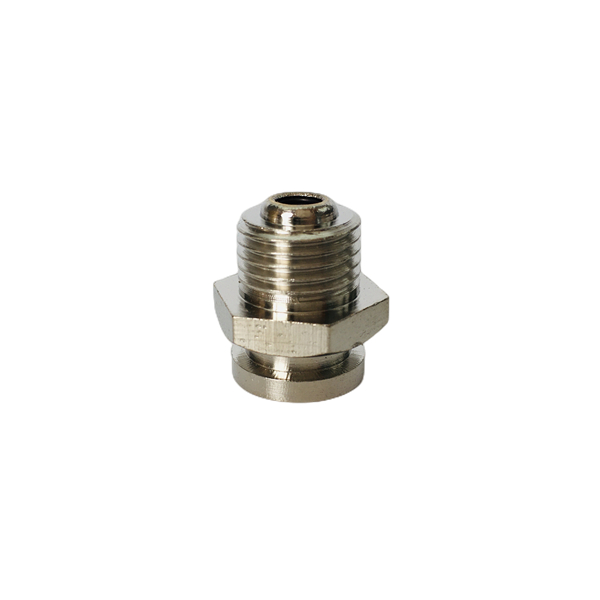

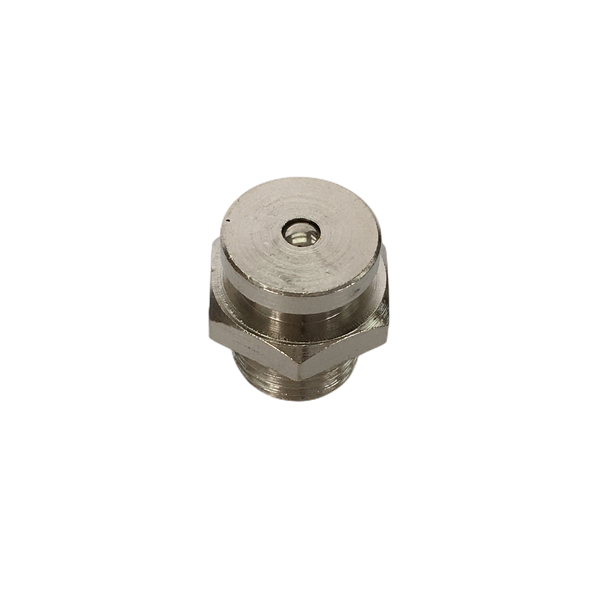

The glue gun hose SPK-2C and the glue nozzle G.NPL.BH-R1/4 are accessories for the special tool for the end cap glue injection of the turbine generator. The connector of the machine end cover, used with the glue gun, can be used for high viscosity sealant.
Model Description
|
Model |
capacity |
Displacement / stroke |
Maximum pressure |
Dimension |
weight |
||
|
length |
height |
Oil groove diameter |
|||||
|
KH-32 |
200ml (210ml Filling tube) |
1.44ml |
25MPa |
505mm |
129mm |
60mm |
1.45kg |
Precautions
This Generator cover manual sealant injector KH-32 cannot be restored to its original state after use, so it is recommended to replace it every two years.

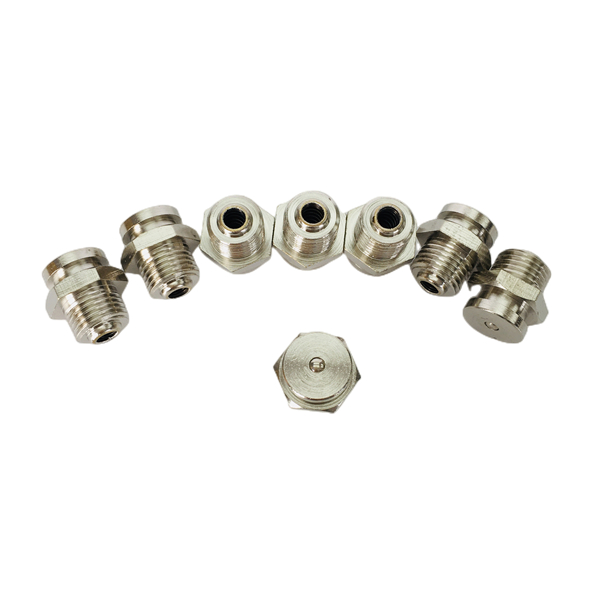

Spare of manual sealant injector KH-32
