Characteristic
Generator end cap Sealant 53351JG has the following characteristics
1. Good compactness, not easy to leak gas or liquid media;
2. Having appropriate mechanical strength and hardness, maintaining effective sealing under high temperature and pressure;
3 Good Compressibility and resilience, small permanent deformation;
4. Does not soften or decompose at high temperatures, and does not harden or crack at low temperatures;
4. Good corrosion resistance, able to work for a long time in acid, alkali, oil and other media;
5. Its volume and hardness change is small, and it does not adhere to the metal surface;
6. Low friction coefficient and good wear resistance;
7. Has softness that combines with the sealing surface and can seal all metal surfaces;
8. Good aging resistance and durability;
Operation and usage
1. Clean the sealing groove inside the end cap and check that the gap between the horizontal and vertical split surfaces of the end cap meets the requirements of the regulations.
2. Prefill Generator end cap Sealant 53351JG into the sealing groove on the joint surface of the end cover, close the end cap, and evenly tighten the bolts to the specified torque.
3. Slowly inject Generator end cap Sealant 53351JG into the sealing groove from the glue injection hole on the horizontal joint surface. Wait for adjacent holes to flow out and indicate that they have been filled, and then inject them in sequence until they are fully filled.
Application
Recommended application scenarios for Generator end cap Sealant 53351JG
1. For hydrogen sealing of steam end and excitation end of end cap of hydrogen cooled steam turbine generator unit
2. For hydrogen sealing of generator outlet bushing
3. For the joint surface between metal and metal as gasket or washer
4. For irregular pipe threads and uneven surfaces
5. For metal gaskets and mechanical joints, cylinder heads, manifolds, differentials, gear boxes, etc.
6. For sealing for radiator hose connection

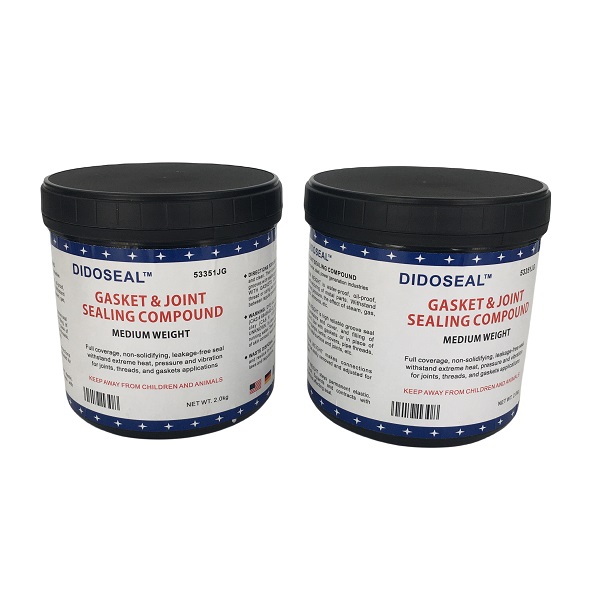

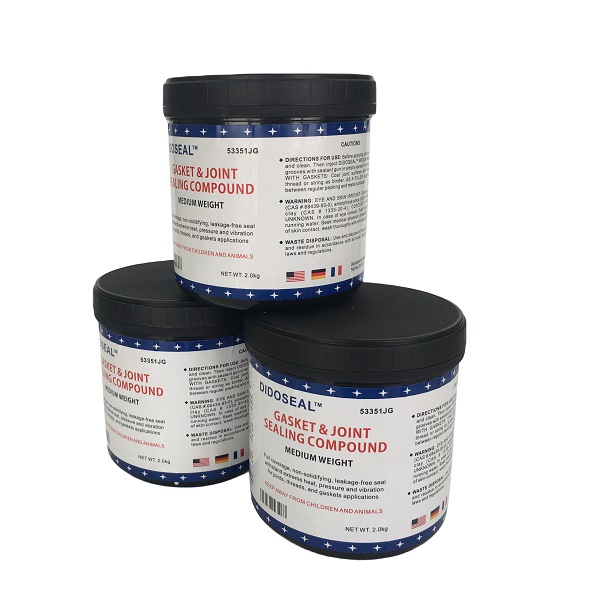

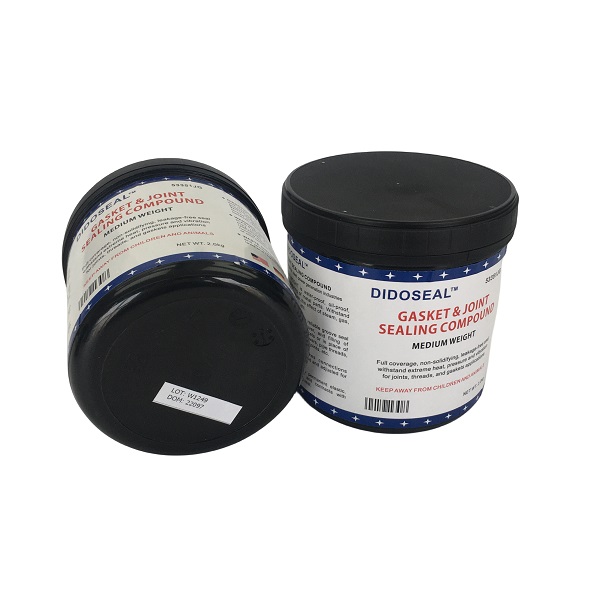

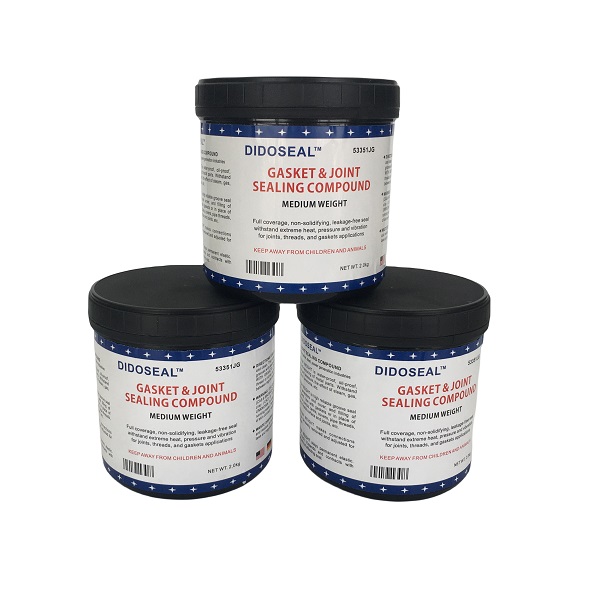

Generator end cap Sealant 53351JG Show
