Generator RTV epoxy adhesive J0792

Short Description:

Generator RTV epoxy adhesive J0792 is a two component epoxy impregnating paint mainly used for on-site impregnation treatment of generator winding binding tapes and gasket materials. After brushing, it can improve the insulation performance and mechanical strength of the binding tapes, and extend their service life. At the same time, it can also be used for the treatment of insulation components, improving their insulation performance and enabling them to adapt to high temperature and high voltage working environments. If it is necessary to accelerate the drying progress, heating drying can be carried out to improve work efficiency.
Brand: YOYIK

Send email to us

Product Detail

Features

1. Room temperature curing: It does not require heating and can be cured at room temperature, making it convenient to use.

2. Good temperature resistance: The cured epoxy adhesive has excellent temperature resistance and can be used in high-temperature environments.

3. Good electrical insulation performance: After curing treatment, the RTV epoxy adhesive J0792 has good electrical insulation performance and can be used for the treatment of insulation components.

4. Wide applicability: Generator RTV epoxy adhesive J0792 is suitable for surface coating and insulation treatment of fixed binding ropes (tapes) at the end of large generator stator windings.

Product parameters

Solid content	50% -60%
Surface resistivity	≥ 1 × 1012 Ω
Shelf life	Storage period at room temperature is 12 months
Applicable unit	Insulation and heat resistance level F (temperature resistance 155 ℃) for generators

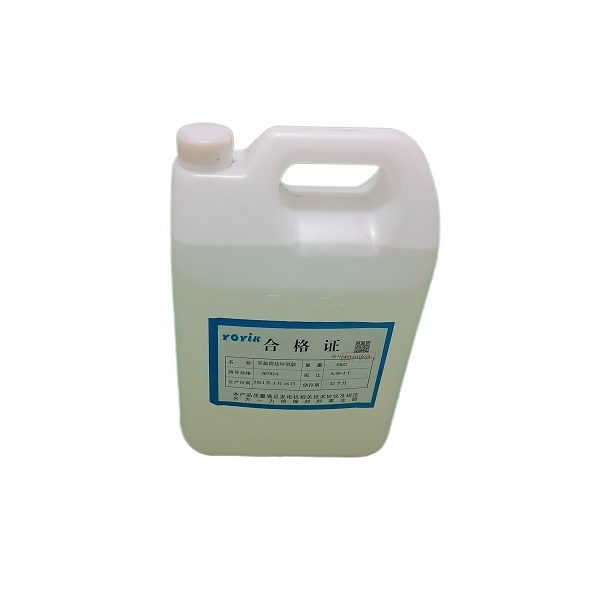

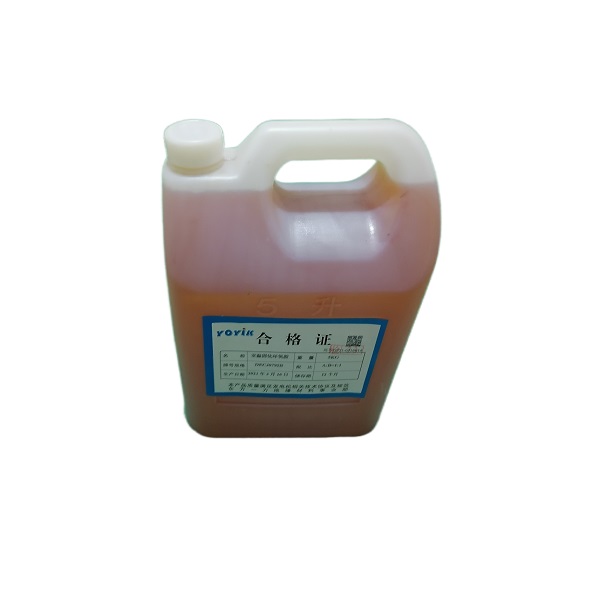

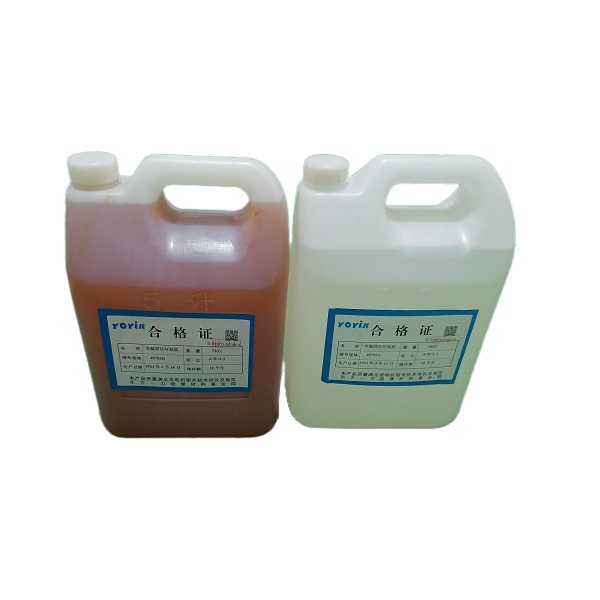

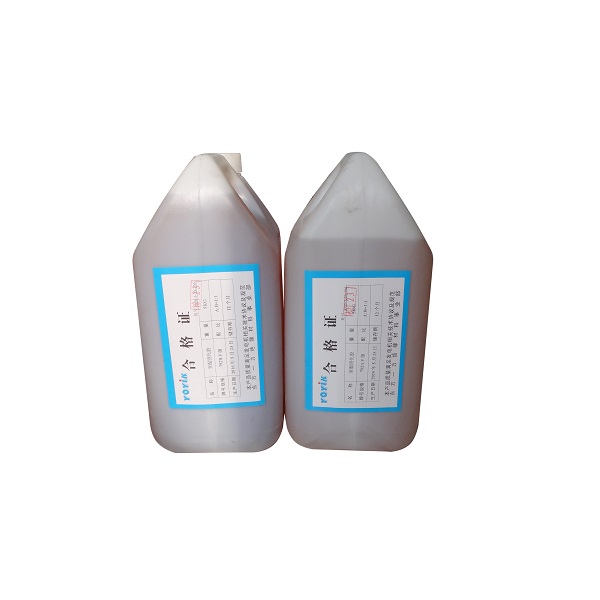

Packaging	RTV epoxy adhesive J0792 is packaged in two components: A and B.

Usage and precautions

Before using generator RTV epoxy adhesive J0792, components A and B should be mixed together in proportion and immediately stirred continuously for more than 5 minutes. After stirring evenly, it can be used. The prepared room temperature curing epoxy adhesive should be used up within 8 hours.

The generator RTV epoxy adhesive J0792 should be stored directly at room temperature and should not be near heat sources to avoid direct sunlight exposure. The storage period at room temperature is 12 months.
