High Temperature steam turbine cylinder sealing grease MFZ-2

Short Description:

High Temperature steam turbine cylinder sealing grease MFZ-2 is a liquid paste sealant that does not contain asbestos, lead, mercury and other harmful ingredients to human body. It is widely used in fossil-fuel power station and industrial steam turbine body cylinder junction surface sealing, which can resist special high temperature of 600 ℃, main steam pressure of 26MPa, and has good high-pressure performance and adhesion performance. It is an ideal sealing material for steam turbine installation and maintenance in thermal power plant, It can also be used for sealing the flange surface of high-temperature hot furnace pipelines.
Brand: YOYIK


Product Detail

Features

The Features of MFZ-2 cylinder sealing grease:

1. The high-pressure performance of steam turbine cylinder sealing grease MFZ-2 is strong;

2. The liquid paste is easy to construct, and after solidification, it is tough, dense, and creep resistant;

3. MFZ-2 steam turbine cylinder sealing grease can effectively prevent steam and other chemical media from corroding, without damaging the cylinder surface;

4. Steam turbine cylinder sealing grease MFZ-2 does not contain asbestos and halogens, making it safe and harmless.

Specification

Appearance Brown liquid paste
Specific gravity 1.65-2.25g/cm3
Resistance to main steam pressure 26MPa
High temperature resistance to main steam temperature 600 ℃

Usage

1. The cylinder surface should be clean and free from oil, foreign objects, and dust.

2. After thorough mixing, apply steam turbine cylinder sealing grease MFZ-2 to the cylinder surface with a thickness of 0.5-0.7mm. Do not apply sealing grease around the bolt holes, locating pin holes, and the inner edge of the cylinder surface to prevent it from squeezing into the screw hole tip hole and entering the flow system.

3. After tightening the bolts on the cylinder, wipe off the sealing grease that has leaked from the periphery.

4. After the cylinder locking is completed, there is no need to wait for it to stand still. After the unit starts and heats up, the sealing grease will solidify accordingly.

steam turbine cylinder sealing grease MFZ-2 Show

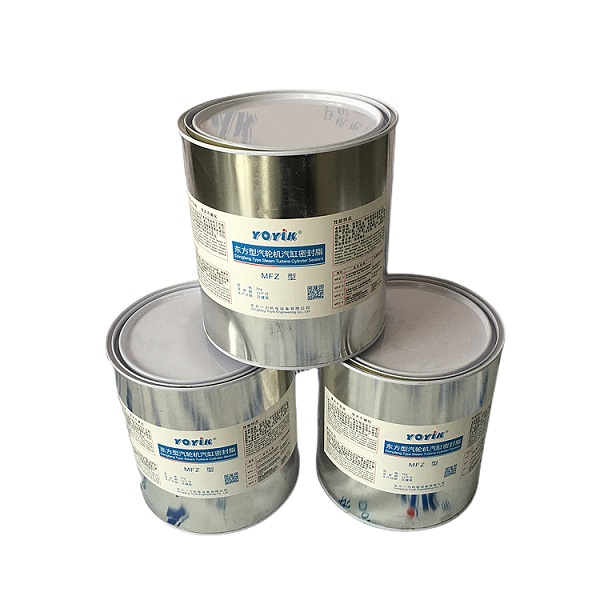

High Temperature sealing grease MFZ-2 (4) High Temperature sealing grease MFZ-2 (3) High Temperature sealing grease MFZ-2 (2) High Temperature sealing grease MFZ-2 (1)
