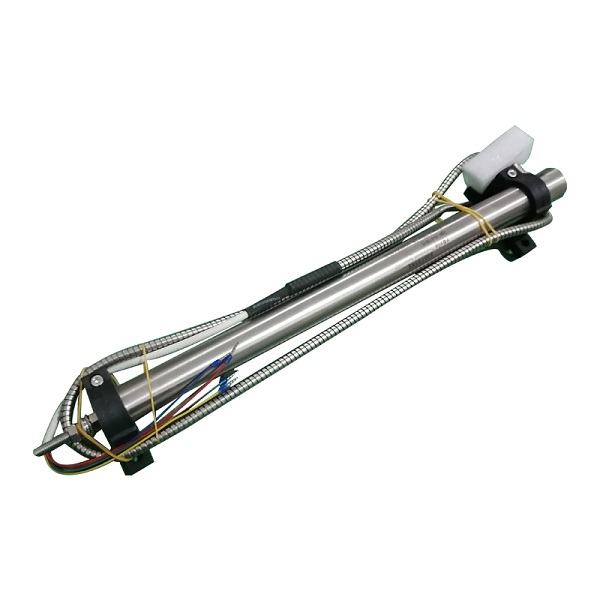

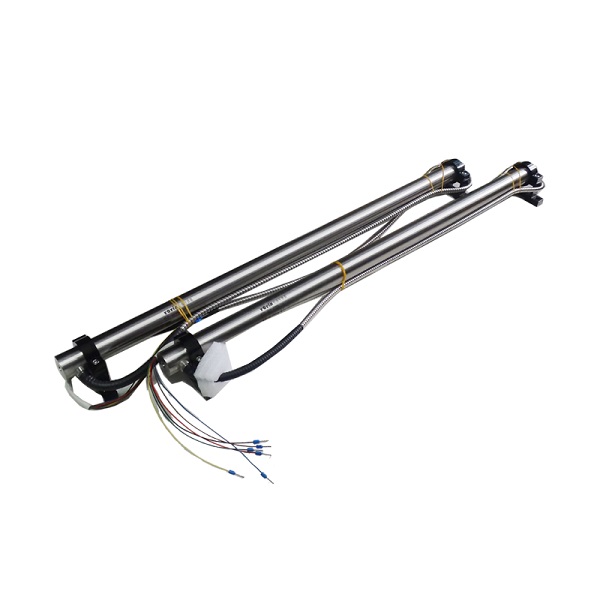

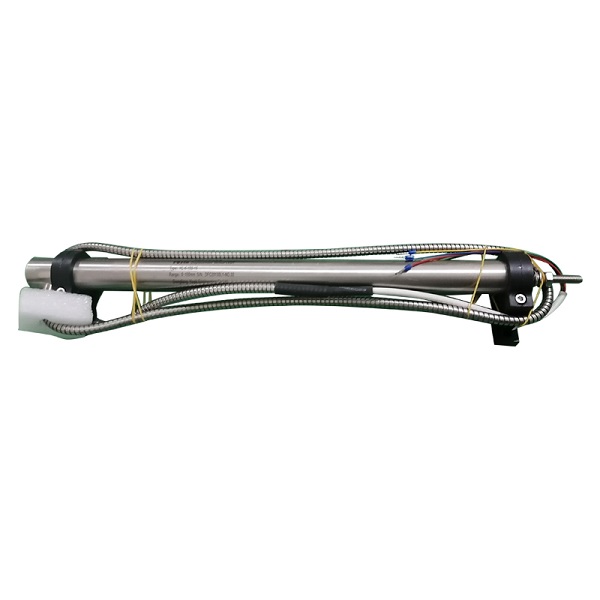

Linear Range | Optional from 0~800mm | Linearity | ±0.3% FULL STROKE |
Sensitivity | 2.8~230mv/v/mm | Voltage | ≤ 0.5% FSO |
Excitation Voltage | 3Vms (1~17vms) | Excitation Frequency | 2.5 KHz (400 Hz ~ 100 kHz) |
Working Temperature | -40~150℃ | Sensitive Coefficient | ±0.03%FSO./℃ |
Vibration Tolerance | 20g (up to 2 kHz) | Shock Tolerance | 1000g (within 5ms) |
Model |
Linear Range A (mm) |
Length (mm) |
PRI Coil Resistance (Ω±15%)* |
SEC Coil Resistance (Ω±15%)* |
|
|
Unipolar |
Biopolar |
|
|
|
HL-6-50-150 |
0~50 |
±25 |
185 |
108 |
394 |
HL-6-100-150 |
0~100 |
±50 |
270 |
130 |
350 |
HL-6-150-150 |
0~150 |
±75 |
356 |
175 |
258 |
HL-6-200-150 |
0~200 |
±100 |
356 |
175 |
202 |
HL-6-300-150 |
0~300 |
±150 |
600 |
300 |
425 |
*Above mentioned value of resistance is for reference only. Actual values of different batches may vary.

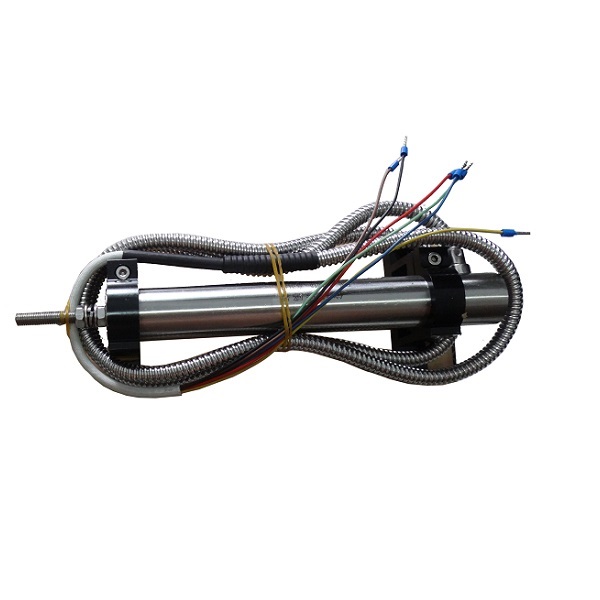

1. Sensor wires: primary: brown yellow, sec1: black green, sec2: blue red.
2. Linear range: within two scale lines of the sensor rod (based on “Inlet”).
3. The sensor rod number and shell number must to be consistent, supporting the use.
4. Sensor fault diagnosis: measure PRI coil resistance and SEC coil resistance.
5. Keep sensor shell and signal demodulation unit away from strong magnetic fields.
