General Description of Pressure switch ST307-350-B
A range of piston-operated pressure switches for general applications where an electrical signal is needed to indicate a given pressure condition in a hydraulic circuit. The microswitch is actuated by the operating plate of an adjustable loading spring. The spring load holds the operating plate against the switch until applied hydraulic pressure on a small piston forces the operating plate away from the switch to change over the switch contacts. The switch will reset when the hydraulic pressure falls by a small differential.
Features and Benefits of Pressure switch ST307-350-B
1 Switching accuracy less than 1% of pressure setting
2 Low hysteresis
3 Suitable for AC or DC current
4 Galvanic gold-plated silver switch contacts for long life
5 Small, easy to install
6 Electrical protection to IEC 144 class IP65
7 Select requirements from:
3 pressure ranges
3 adjustment types
3 mounting styles
Locking screw and keylock options

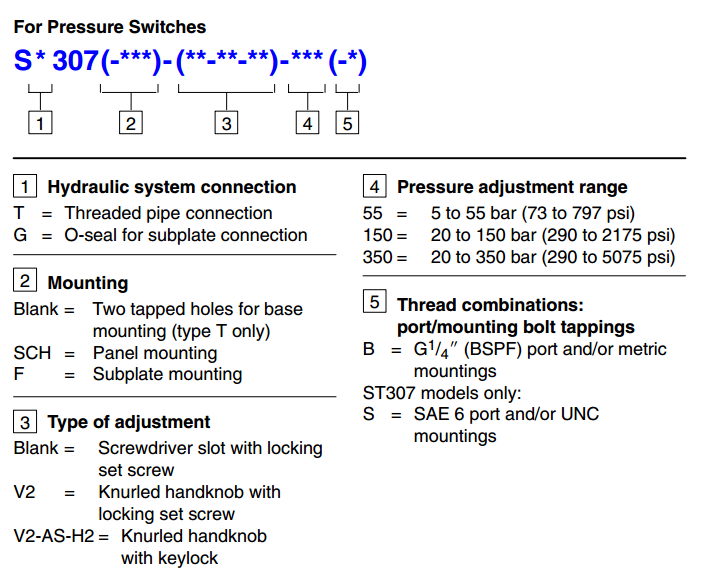

Model Code of Pressure switch ST307-350-B
Operating Data of Pressure switch ST307-350-B
Maximum pressure, all models: 350 bar (5075 psi)
Switching repeatability: <1%
Hydraulic fluids: Antiwear hydraulic oil or water-in-oil emulsions
Fluid temperatures: –50C to +100C (–58F to +212F)
Main housing materials: Aluminium and brass
Mass: 0.62 kg (1.4 lb)
