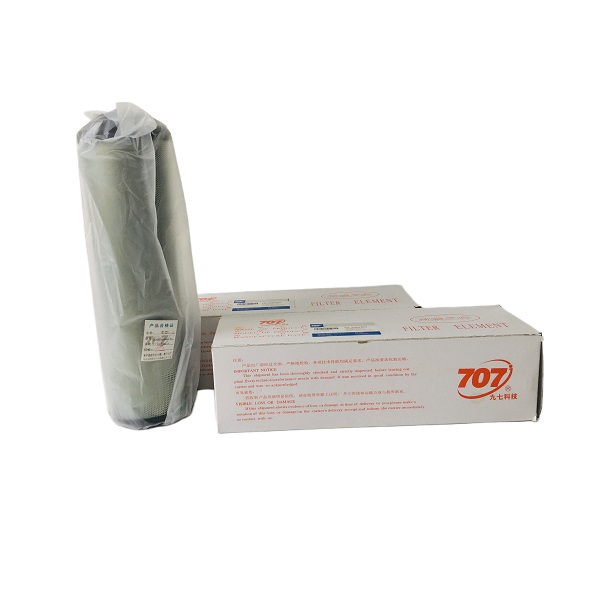

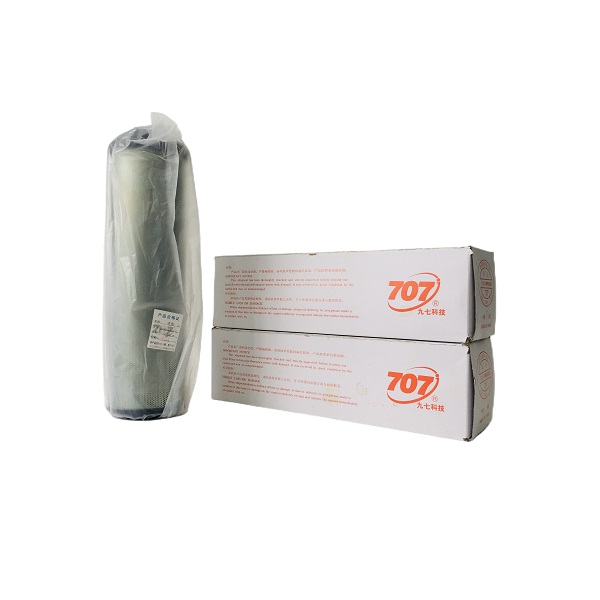

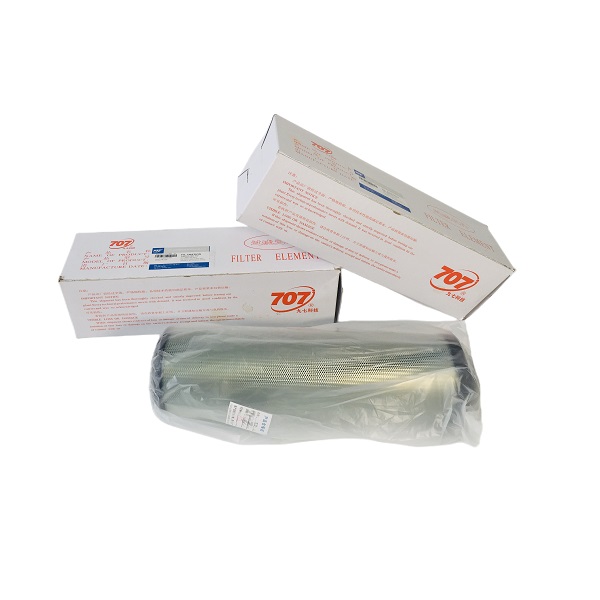

Jacking Oil Pump Suction Filter QF6803GA20H1.5C

Short Description:

QF6803GA20H1.5C is the inlet filter element of the jacking oil pump, installed at the inlet of the jacking oil pump. Before the oil enters the jacking oil pump, it is filtered to remove impurities and keep the oil clean. This is beneficial for protecting the jacking oil pump from long-term use, reducing maintenance frequency and costs. The lubricating oil entering the jacking oil pump flows out from the oil cooler with an inlet pressure of 0.176 MPa. After filtering impurities through the inlet filter element, it is pressurized by the oil pump. The outlet oil pressure is 16 MPa, flowing to the one-way valve and throttle valve, and finally entering various bearings to ensure smooth operation of the unit.

Send email to us

Product Detail

Function

The Jacking Oil Pump Suction Filter QF6803GA20H1.5C is an important component in the steam turbine jacking oil system. Its main function is to filter the jacking oil and prevent impurities and particles in the jacking oil from causing damage to the turbine equipment.

The Jacking Oil Pump Suction Filter QF6803GA20H1.5C is usually made of high-efficiency filtering material, which can effectively filter out impurities and particles in the jacking oil to ensure the cleanliness and stability of the jacking oil and protect the turbine equipment from damage.

The Jacking Oil Pump Suction Filter QF6803GA20H1.5C can also play a role in extending the service life of the jacking oil and improving the operational efficiency of the steam turbine equipment. After being filtered by a filter element, the cleanliness and stability of the jacking oil are improved, which can extend its service life, reduce replacement frequency and cost. At the same time, the cleanliness and stability of the jacking oil can also improve the operational efficiency of steam turbine equipment, reduce energy consumption and emissions, and play a role in energy conservation and environmental protection.

Specifications

Maximum working pressure difference	0.45MPa
Applicable medium	oil
Raw water pressure	20KG/c ㎡
Purpose	Oil to remove impurities
Working temperature	-20-80 ℃
Material	stainless steel
