Working principle
Rotation Speed Sensor DF6202-005-050-04-00-10-000adopts advanced giant magnetoresistive elements. When the ferromagnetic teeth pass through the magnetoresistive elements arranged as Wheatstone bridge, an alternating signal can be obtained through differential amplification. The signal frequency corresponds to the passing frequency of the ferromagnetic teeth, while the signal amplitude remains constant. The built-in circuit reshapes the signal, and the sensor can output a good rotating speed rectangular pulse signal.
Technical Specification
The Technical Specification of Rotation Speed Sensor DF6202-005-050-04-00-10-000
| Input voltage | +24VDC power supply |
| Input frequency range | 0-25000Hz |
| Requirements for gear disc | high conductivity ferromagnetic material |
| Output signal | 0-10V rectangular pulse |
| Operating temperature range | - 20 to+120 ℃ |
| Protection grade | IP67 |
Matters needing attention
1) The cable shield in the Rotation Speed Sensor DF6202-005-050-04-00-10-000 output line must be reliably grounded;
2) Normal temperature type and high temperature type must be used within the allowable range;
3) The sensor is not allowed to be used and placed in a strong magnetic field environment;
4) When placing, sensors are not allowed to be placed together, and a certain distance should be kept from each other;
5) Avoid strong impact during installation and transportation.
Tip: If you have any other questions, please do not hesitate to contact us.

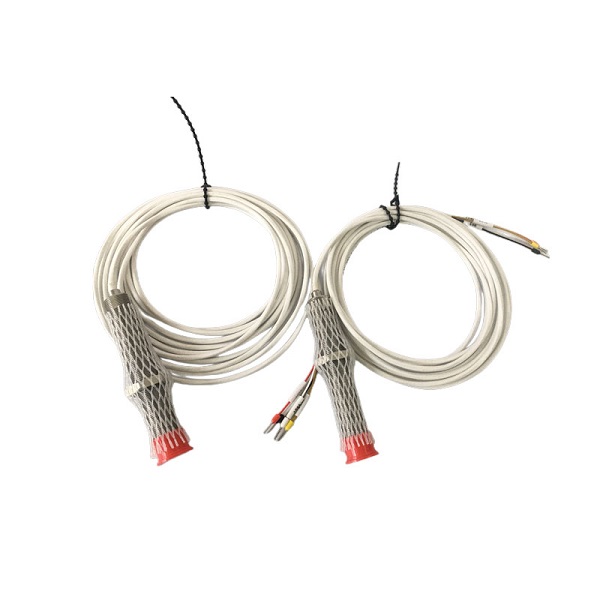

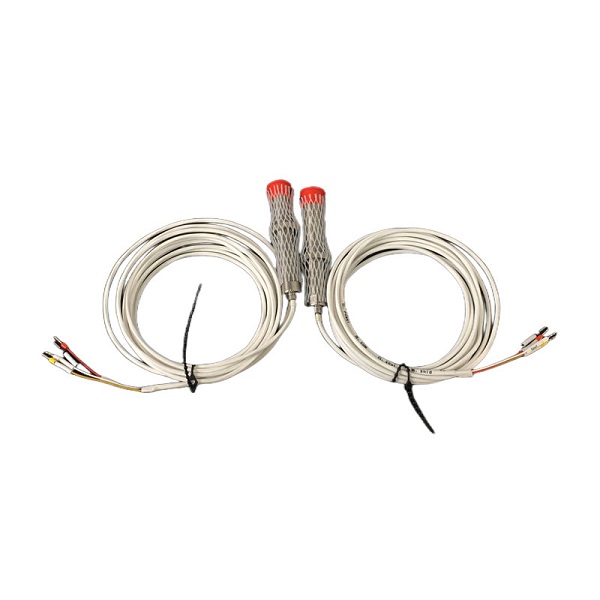

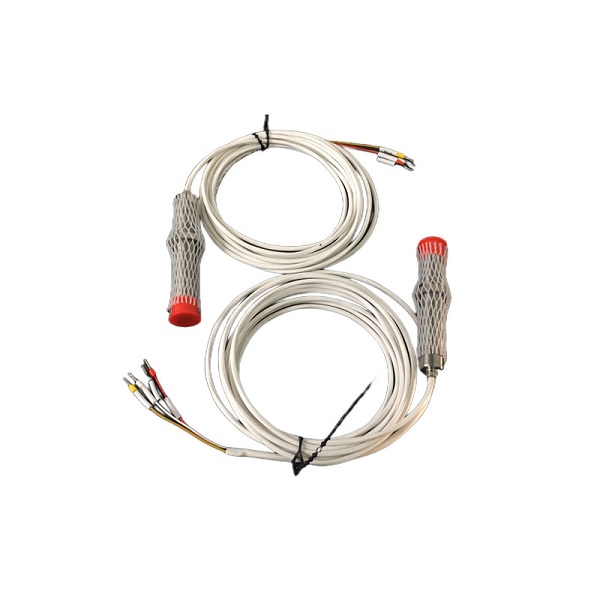

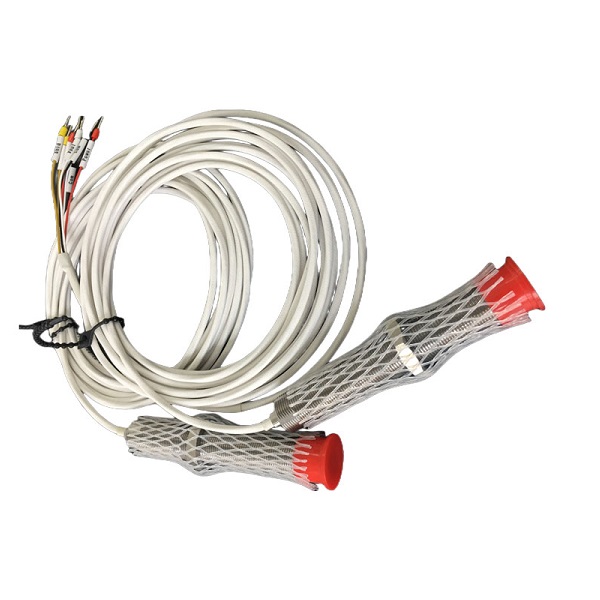

DF6202 Rotational Speed Sensor Show
