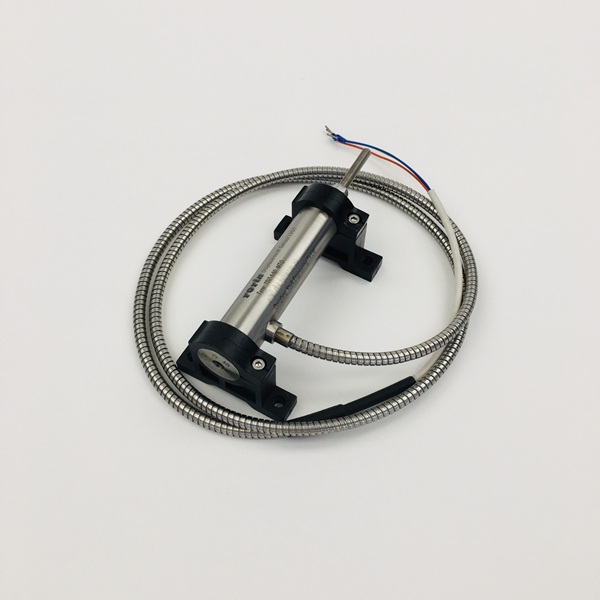

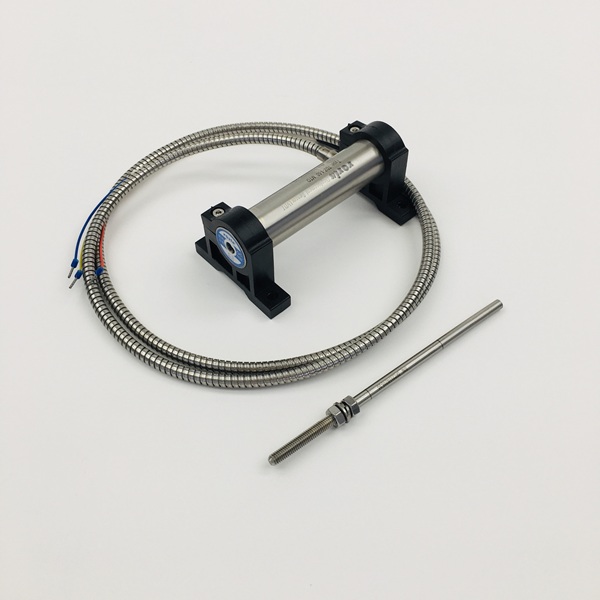

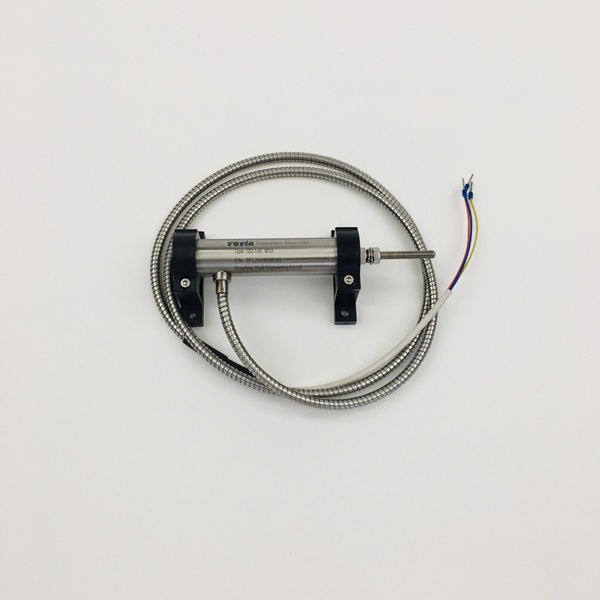

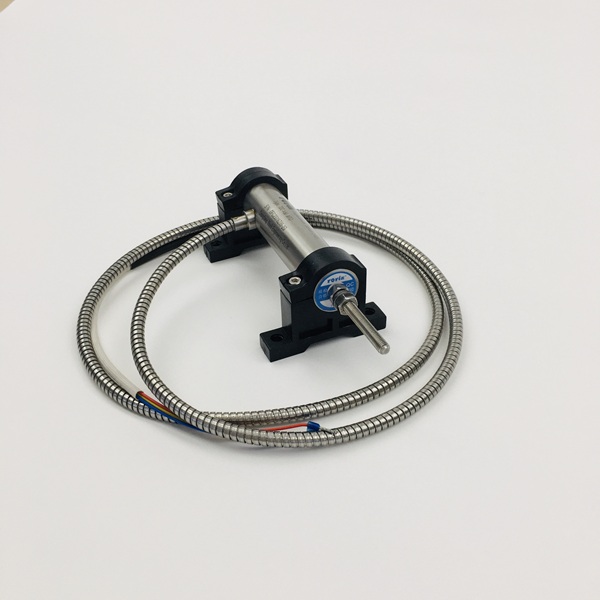

LVDT sensor TDZ-1-50

Short Description:

LVDT sensor TDZ-1-50 is a high-precision displacement sensor designed for the stroke of high-speed oil motors in steam turbines. The sensor is based on the principle of electromagnetic induction and measures linear displacement by generating a changing signal when the iron core moves in the coil. Its core components include a set of primary coils, secondary coils, and moving iron cores. When the primary coil is connected to the excitation signal, the generated magnetic field will cause the two secondary coils to generate an induced electromotive force. Since the secondary coils are connected in reverse series, the change in the position of the iron core will cause the output voltage of the secondary coil to change, forming a differential output signal. After processing, this signal can accurately reflect the displacement of the iron core and achieve high-precision displacement measurement.
Brand: YOYIK

Send email to us

Product Detail

Technical parameters

Technical parameters	Range
Linear range	±50mm
Non-linearity	<0.5% F.S
Sensitivity	2.8~230mV/V/mm
Primary excitation voltage	5Vrms (1~5Vrms)
Excitation frequency	1KHz (400Hz~10KHz)
Dynamic frequency	200Hz (-3dB)
Zero voltage	less than 0.5% of full scale output
Sensitivity drift	0.01%/℃ F.S
Operating temperature	-40℃~+150℃ (ordinary type)
Operating temperature	-40℃~+210℃ (high temperature type)
Load impedance	The load connected to the sensor must be greater than 20KΩ

Product features

1. High-precision measurement: LVDT sensor TDZ-1-50 adopts advanced LVDT technology, which converts displacement changes into electrical signal output through the principle of electromagnetic induction. This measurement method has the advantages of non-contact, strong anti-interference ability, and long life. The measurement accuracy can reach 0.05% F.S. (full range), ensuring accurate and reliable measurement results in various complex environments.

2. High temperature resistant design: The sensor has excellent high temperature resistance and can work stably for a long time in harsh environments. Its operating temperature range is usually -40℃~+150℃ (conventional type), and some high temperature versions can even work in the range of -40℃~+210℃, meeting the displacement measurement needs in various high temperature environments.

3. Easy to maintain: The LVDT sensor TDZ-1-50 adopts a plug-in design, which is easy to install and does not require disassembly of the equipment. At the same time, the sensor has a fault self-diagnosis function, which is convenient for users to quickly troubleshoot faults and reduce maintenance costs.

4. High protection level: The sensor adopts a waterproof and dustproof design, which is suitable for industrial applications in harsh environments, ensuring stable operation under various harsh conditions.

5. Fast dynamic response: The sensor has the advantages of wide measurement range, low time constant and fast dynamic response, and is suitable for various automatic measurement and control applications, especially in situations requiring high precision and high reliability.

Application

LVDT sensor TDZ-1-50 is widely used in various situations requiring high-precision displacement measurement, especially in steam turbines for measuring the stroke of high-valve oil motors. It can monitor the stroke and valve position of the oil motor in real time, and convert the mechanical displacement into electrical signal output by accurately measuring the movement of the oil motor piston rod, thereby realizing accurate measurement of the actuator position. In addition, the sensor can also be used for monitoring and protection of the oil motor stroke and valve position to ensure the normal operation and safety of the equipment.

Installation and maintenance precautions

When installing the LVDT sensor TDZ-1-50, ensure that the sensor is in good contact with the object to be measured to ensure the accuracy of the measurement. The installation position of the sensor should avoid interference from strong magnetic fields and strong currents. During maintenance, the connection parts and sealing performance of the sensor should be checked regularly to ensure its reliable operation in harsh environments.
