LVDT Sensor TDZ-1E-32

Short Description:

LVDT sensor TDZ-1E-32 is a high-precision displacement measurement device specially designed for power plant steam turbines. It is mainly used to measure the stroke of the hydraulic actuators of the main steam valve, high-pressure cylinder, medium-pressure cylinder, and low-pressure cylinder of the steam turbine. By accurately measuring the displacement of these key components, the sensor provides vital data support for the control system of the power plant, ensuring the stable operation and efficient power generation of the steam turbine.
Brand: YOYIK


Product Detail

Technical indicators

1. Measuring range: The LVDT sensor TDZ-1E-32 has a wide measurement range, generally ranging from a few millimeters to a few meters, and the specific range can be customized according to the actual needs of the power plant.

2. Accuracy: The measurement accuracy of the sensor is as high as 0.1%~0.5%, ensuring the accuracy and reliability of the data.

3. Resolution: Its resolution is usually between 0.01mm~0.1mm, which can capture tiny displacement changes.

4. Output signal: The sensor supports a variety of output signal forms, such as analog signals, digital signals, and pulse signals, which is convenient for connection and communication with different types of control systems.

5. Operating temperature range: The TDZ-1E-32 sensor can work stably in a high temperature environment of -40℃~+150℃, and some high temperature resistant models can even reach 250℃, meeting the complex and changeable working conditions of power plants.

6. Anti-interference ability: The sensor has strong anti-interference ability and can maintain stable measurement performance in harsh environments such as electromagnetic interference.

7. Durability: The TDZ-1E-32 sensor is made of high-quality materials and advanced technology, with high durability, and can work stably for a long time in harsh working environments, reducing the frequency of maintenance and replacement.

Product features

1. Fast response: The LVDT sensor TDZ-1E-32 can quickly respond to the displacement changes of the turbine actuator and provide accurate measurement data in real time.

2. Accurate measurement: Advanced LVDT technology is used to ensure the accuracy and reliability of the measurement results.

3. Easy to install: The sensor usually adopts a stable clamping installation method, which is convenient for installation and commissioning on site in the power plant.

4. Flexible customization: It can be customized according to the actual needs and working conditions of the power plant to meet different measurement ranges and accuracy requirements.

Application scenarios

LVDT sensor TDZ-1E-32 is widely used in steam turbine control systems in power plants to monitor and control the stroke of the main steam valve, high-pressure cylinder, medium-pressure cylinder and low-pressure cylinder actuator. By accurately measuring the displacement of these key components, the sensor provides important data support for the power plant's automation control system, which helps to achieve stable operation and efficient power generation of the steam turbine.



LVDT sensor TDZ-1E-32 plays an important role in the steam turbine control system of power plants with its advantages such as high precision, high stability and strong anti-interference ability. By real-time monitoring and controlling the displacement changes of the steam turbine actuator, the sensor provides reliable data support for the automation control of the power plant, which helps to achieve safe, stable and efficient operation of the steam turbine. Dongfang YOYIK, as the manufacturer of TDZ-1E-32 sensors, is committed to providing customers with high-quality products and services to meet the actual needs and operating conditions of power plants.

LVDT Sensor TDZ-1E-32 Details

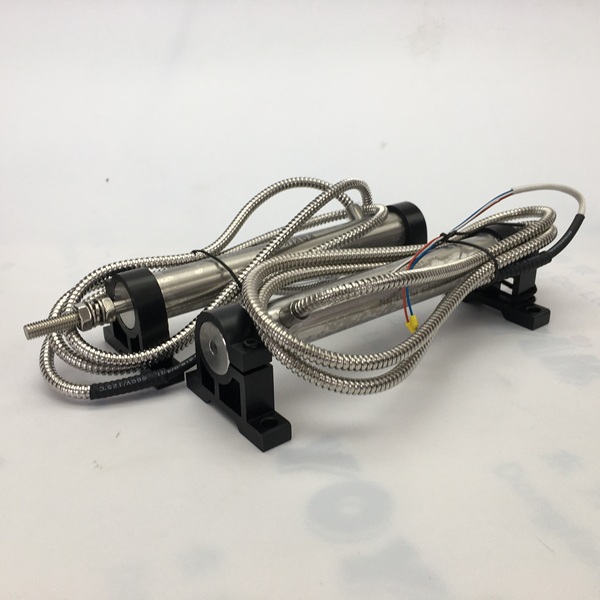

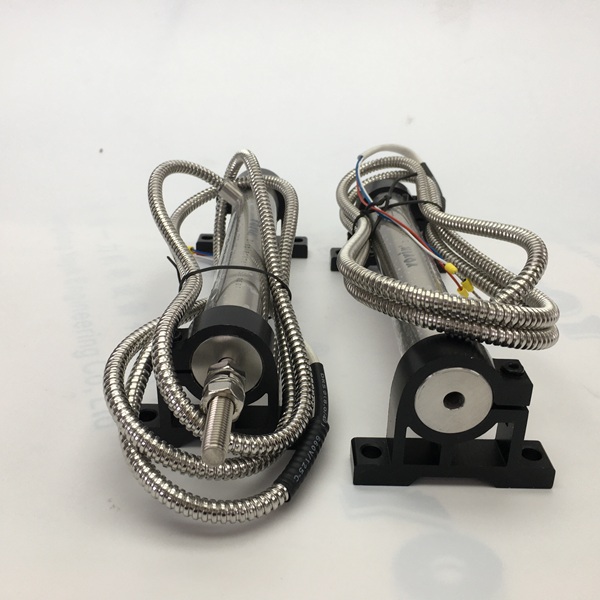

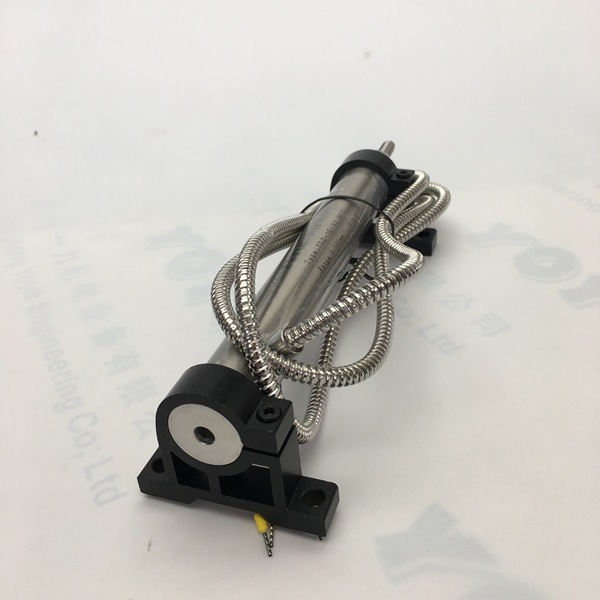

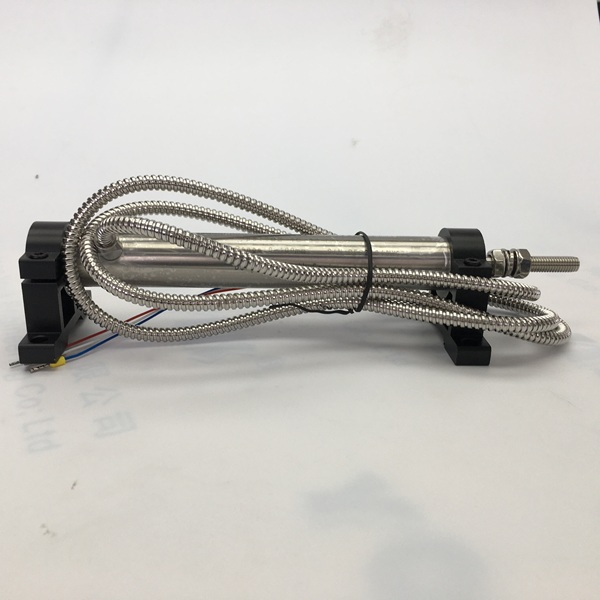

LVDT Sensor TDZ-1E-32 (4) LVDT Sensor TDZ-1E-32 (2) LVDT Sensor TDZ-1E-32 (3) LVDT Sensor TDZ-1E-32 (1)
