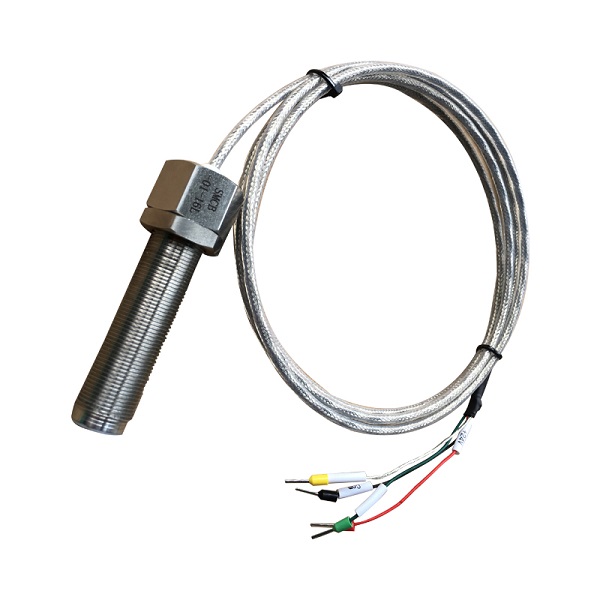

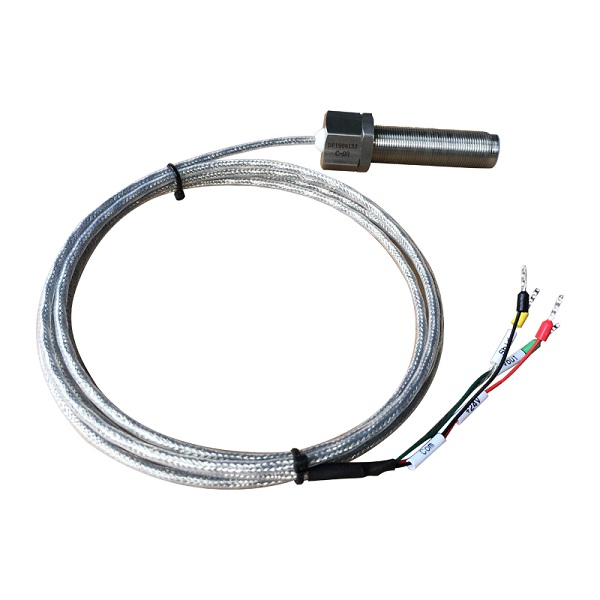

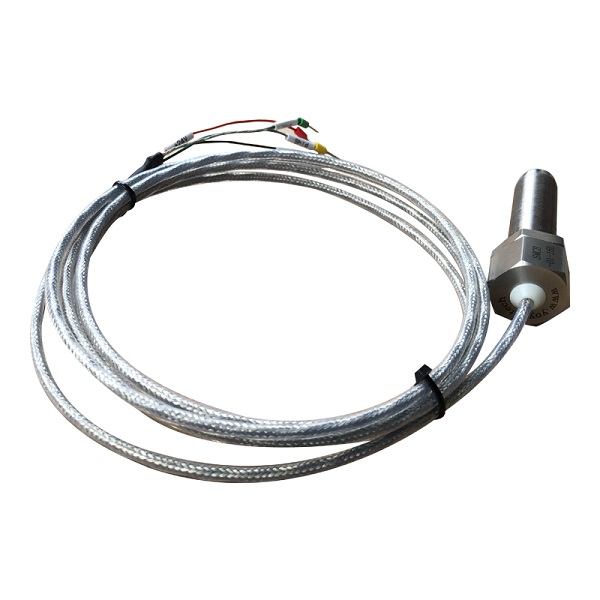

The speed sensor SMCB-02-16L is a high-precision, high-reliability sensor designed for rotating machinery such as steam turbines. It combines advanced magnetic sensitive elements with signal processing technology, can accurately measure the speed of steam turbines, and provide key data support for the operation monitoring and control system of the equipment.

Technical features

The SMCB-02-16L speed sensor uses magnetic sensitive elements as the core detection component, and has the characteristics of wide frequency response, good stability, and strong anti-interference ability. The sensor can measure speed signals up to tens of thousands of pulses/second while maintaining a measurement accuracy of ±1 pulse/second, ensuring the accuracy and reliability of the data. Its installation distance is only 0.54mm, and the response frequency range is from 1Hz to 20kHz, which is suitable for measurement needs in various speed ranges.

In addition, the speed sensor SMCB-02-16L adopts PNP open-circuit output, the power supply voltage range is DC 12V to DC 24V, and the power consumption is only 1W, which has low energy consumption and wide applicability. Its conventional thread specification is M16×1, which is convenient for users to install and debug according to actual needs.

Application advantages

In steam turbine applications, the SMCB-02-16L speed sensor shows significant advantages. First, it can monitor the speed of the steam turbine in real time and feed back the data to the control system, so that the equipment can operate within a safe and efficient range. Secondly, the high precision and stability of the sensor help to detect abnormal conditions of the equipment in a timely manner, such as overspeed, vibration, etc., thereby effectively preventing the occurrence of faults and reducing maintenance costs and production interruption risks.

In addition, the speed sensor SMCB-02-16L also has good environmental adaptability. It can work normally in an ambient temperature range of -25℃ to 80℃, and is not affected by harsh environmental factors such as moisture and dust. At the same time, the sealed structure inside the sensor effectively prevents the intrusion of moisture and corrosive substances, and improves the reliability and service life of the equipment.

Installation and maintenance

The installation process of the SMCB-02-16L speed sensor is simple and quick, and users can choose different installation methods such as parallel installation or vertical installation according to actual needs. During the installation process, ensure that the distance between the sensor and the object to be measured is appropriate, and avoid strong vibration or impact. At the same time, the sensor should be firmly and reliably fixed to ensure the accuracy of the measurement results.

In summary, the speed sensor SMCB-02-16L has broad application prospects in the field of steam turbine speed measurement due to its high precision, high reliability, easy installation and maintenance. It can not only provide key data support for the operation monitoring and control system of the equipment, but also effectively reduce maintenance costs and production interruption risks, providing strong guarantees for the safe production and sustainable development of enterprises.
