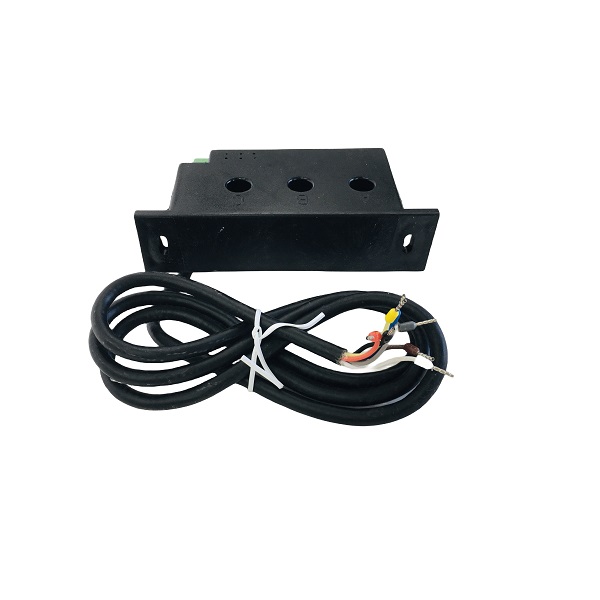

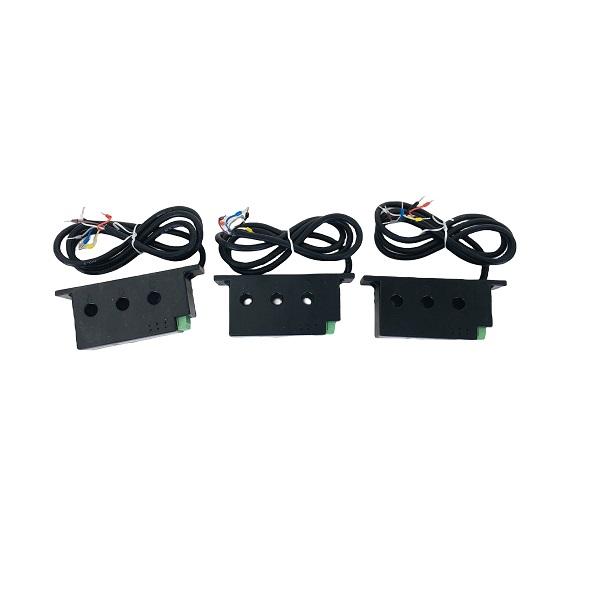

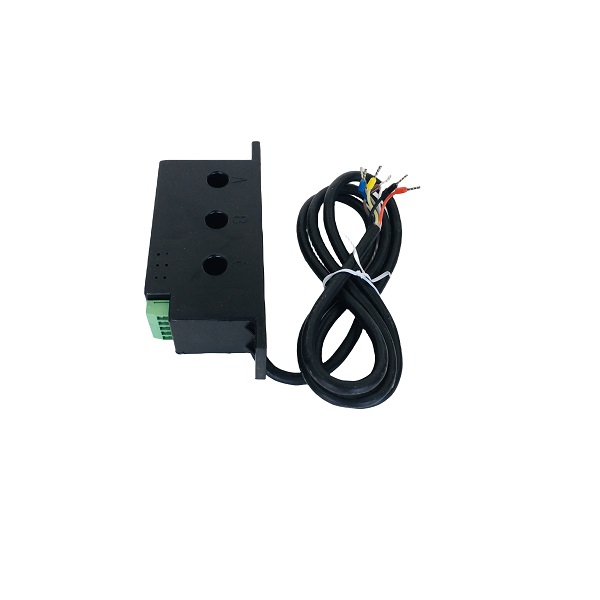

Current transformer BDCTAD-01-002 is a high-precision transformer designed for low-voltage motor integrated protection devices, working based on the principle of electromagnetic induction. Its main structure includes iron core, primary coil, secondary coil and insulating material. When the primary coil passes current, magnetic flux is generated in the iron core, and the secondary coil induces electromotive force. By measuring the current of the secondary coil, the magnitude of the primary current can be calculated. This principle enables BDCTAD-01-002 to convert high-voltage, high-current circuit signals into low-voltage, low-current signals for use in measuring instruments and protection devices.

Current transformer BDCTAD-01-002 has the following significant technical features:

- High-precision measurement: It can accurately capture the changes in current and provide accurate data support for motor protection, with an accuracy of up to 0.2%.

- High-capacity characteristics: Even if the current exceeds 10 times the rated value, the transformer can still maintain a stable output, avoid saturation, and ensure the precise response of the protection device.

- Quick triggering of the protection mechanism: When the current exceeds the preset value, the transformer can immediately trigger the protection mechanism, cut off the power supply in time or take other protective measures to avoid motor overload or damage.

- Versatility: Not only used for current measurement, but also integrated with voltage measurement function to provide more comprehensive motor protection data.

Application fields

Current transformer BDCTAD-01-002 is widely used in many industries such as petroleum, chemical, electric power, steel, metallurgy, papermaking, textile, cement, etc. In these fields, it is mainly used to measure current and trigger the protection mechanism when the current exceeds the set threshold to prevent motor overload or damage. Its high precision and fast response characteristics make BDCTAD-01-002 play an important role in motor protection and system monitoring.

Installation and Maintenance

When installing and using the current transformer BDCTAD-01-002, it is necessary to strictly follow the technical guidelines and industry standards to ensure that the equipment works properly and fully exerts its protection function. At the same time, the transformer needs to be inspected and maintained regularly to extend its service life and ensure its continued stability.

In short, the current transformer BDCTAD-01-002 performs well in industrial automation control systems with its high-precision measurement, fast protection response, multi-function integration and high reliability. It not only effectively improves the efficiency of motor protection, but also helps enterprises reduce operating costs and enhance production stability.
