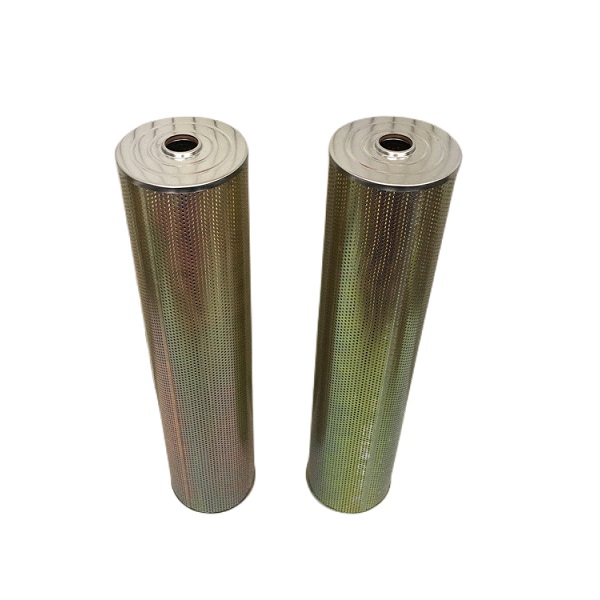

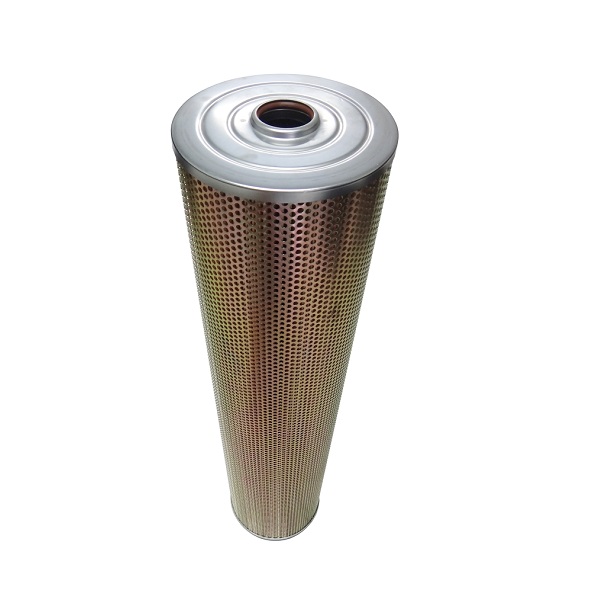

The EH oil filter element SH-006 is a crucial component in the steam turbine regeneration device of power plants. It is specifically designed to ensure the cleanliness and stability of the EH oil system, which is essential for the normal operation of the steam turbine. This filter element is made of high-quality materials and has undergone strict quality control to meet the demanding requirements of power plant applications.

Application in Power Plants

In the steam turbine system of power plants, the EH oil serves as a vital medium for hydraulic control and lubrication. Over time, the EH oil may become contaminated with impurities such as metal particles, rubber particles, and other debris due to component wear and tear. The SH-006 filter element is installed in the EH oil regeneration device to effectively remove these contaminants, maintaining the oil’s cleanliness and extending its service life. It helps to protect critical components of the steam turbine system, such as control valves and hydraulic actuators, from damage caused by contaminated oil, thereby ensuring the reliable operation of the entire system.

Technical Specifications

* Filtration Accuracy : The EH oil filter element SH-006 has a filtration accuracy of 10μm, which means it can effectively remove particles larger than 10 micrometers from the EH oil. This high level of filtration precision ensures that even tiny contaminants are captured, preventing them from causing harm to the system.

* Flow Rate: It has a flow rate of 90L/min, allowing for efficient filtration of the EH oil without causing significant pressure drops in the system. This ensures that the oil can flow smoothly through the filter element and reach its destination in a timely manner.

* Working Pressure and Temperature : The filter element is designed to operate under a working pressure of 0.1-3.0MPa and a working temperature range of 0℃ to +80℃. This makes it suitable for use in various power plant environments and ensures its stability and reliability under different operating conditions.

Product Features

* High Filtration Efficiency: The EH oil filter element SH-006 is made of special filter materials that have excellent filtering performance. It can effectively remove various impurities from the EH oil, including metal particles, rubber particles, and other solid contaminants. This high filtration efficiency helps to maintain the oil’s cleanliness and ensures the normal operation of the steam turbine system.

* Large Dirt Holding Capacity: The filter element has a large dirt holding capacity, which means it can hold a significant number of contaminants before needing to be replaced. This reduces the frequency of filter element replacement, saving maintenance costs and downtime.

* Good Chemical and Thermal Stability: The materials used in the SH-006 filter element have good chemical and thermal stability, enabling it to withstand the corrosive effects of the EH oil and high-temperature operating conditions. This ensures the filter element’s long service life and reliable performance.

* Easy Installation and Replacement: The filter element is designed for easy installation and replacement. It has a compact structure and is equipped with convenient connection methods, such as threaded or flanged connections. This allows for quick and easy installation and replacement, minimizing the downtime of the system.

Maintenance and Replacement

Proper maintenance and timely replacement of the EH oil filter element SH-006 are essential for ensuring its normal operation and the effectiveness of the EH oil regeneration device. During use, it is recommended to regularly inspect the filter element for signs of contamination and pressure drops. When the pressure drops across the filter element reaches a certain level or the oil cleanliness does not meet the required standards, the filter element should be replaced in a timely manner. It is also important to follow the manufacturer’s instructions for maintenance and replacement to ensure the correct procedures are followed.

The EH oil filter element SH-006 is an indispensable component in the steam turbine regeneration device of power plants. Its high filtration efficiency, large dirt holding capacity, and good chemical and thermal stability make it an ideal choice for ensuring the cleanliness and stability of the EH oil system. By using the SH-006 filter element, power plants can effectively protect the steam turbine system from damage caused by contaminated oil, extend the service life of the equipment, and ensure the reliable operation of the power plant.
