F-grade high-strength laminated glass fiber board DECJ0907, as a high-performance material designed for electrical insulation, is a plate-shaped laminated product carefully manufactured through advanced hot-pressing process with F-grade anti-tracking epoxy resin as the base material and alkali-free glass fiber cloth treated with coupling agent as the reinforcing material. This unique combination of materials and manufacturing process gives DECJ0907 board excellent performance in heat resistance, mechanical strength and electrical insulation performance.

Performance characteristics

1. Excellent heat resistance

F-grade high-strength laminated glass fiber board DECJ0907 can maintain high mechanical retention strength under F-grade temperature conditions (about 155℃). This means that even in the high temperature environment generated when the generator is running, the material can work stably and will not show performance degradation due to temperature increase, ensuring the long-term and reliable operation of the generator.

2. Excellent mechanical properties

The board has good tensile strength, compressive strength and impact resistance, and can withstand the mechanical stress generated when the generator is running. This makes it excellent in fixing and supporting the internal components of the generator, such as in the application of stator slot wedges, which can firmly fix the stator winding to prevent it from displacement during operation.

3. Excellent insulation performance

As an insulating material, DECJ0907 plate has excellent electrical insulation performance, can withstand the high voltage generated during the operation of the generator, and effectively prevent current leakage. This not only ensures the normal operation of the generator, but also improves the safety of the operator.

Application areas

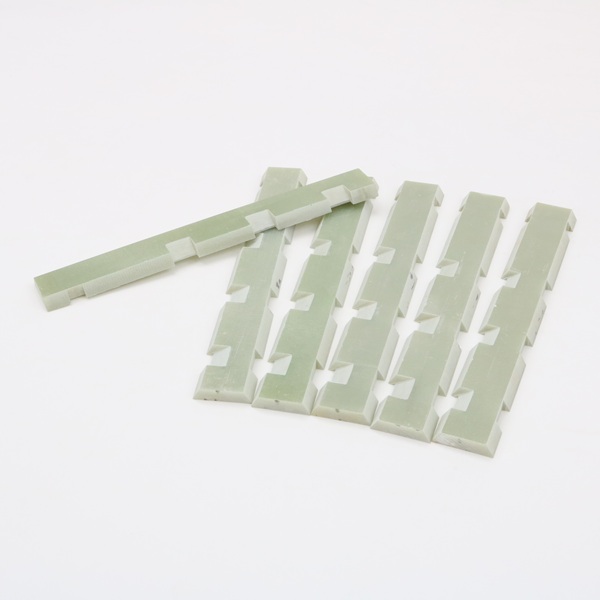

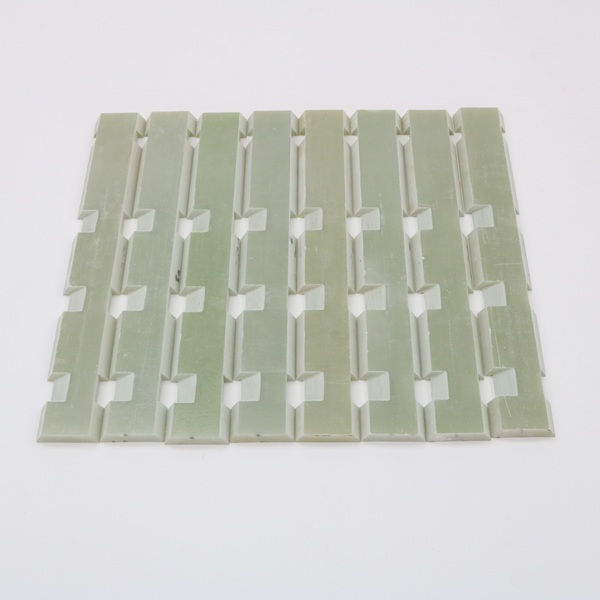

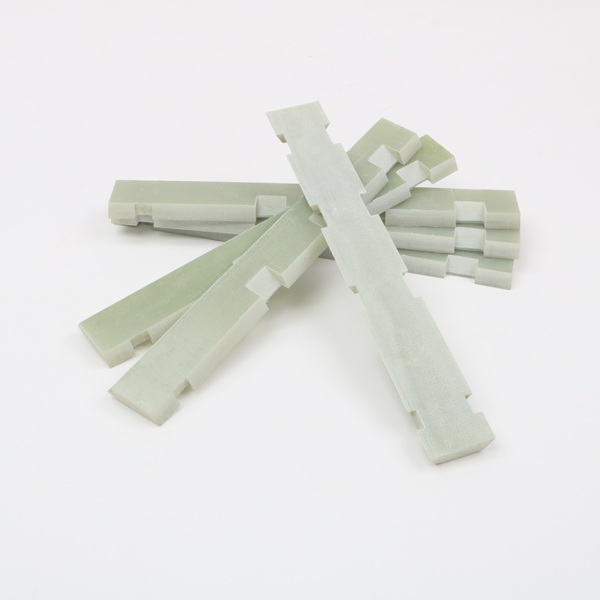

1. Generator stator slot wedge

In power plant generators, DECJ0907 plate is often used as a stator slot wedge material to fix the stator winding and ensure its correct position in the slot. Its high strength and good insulation performance enable the stator winding to work stably and reliably during operation.

2. Interlayer gaskets and wedge-under gaskets

The material can also be used to make interlayer gaskets and wedge-under gaskets for the stator winding of the generator, which play an insulating and supporting role. This helps to improve the insulation performance and mechanical stability of the winding and extend the service life of the generator.

3. Insulation of other electrical equipment

In addition to its application in generators, DECJ0907 boards are also suitable for other occasions that require high electrical insulation performance and mechanical strength, such as high-voltage switchgear, power transformers and other power equipment.

Advantages and Value

1. Improve the stability of equipment operation

The high heat resistance and excellent mechanical properties of the DECJ0907 board enable it to remain stable under harsh working conditions, reduce equipment failures caused by material performance degradation, and improve the overall operating stability of power plant generators.

2. Extend the service life of equipment

Its excellent insulation performance and mechanical strength help protect the internal components of the generator from electrical and mechanical damage, thereby extending the service life of the equipment and reducing the maintenance and replacement costs of the equipment.

3. Safe and reliable

In terms of ensuring the safety of operators, the insulation performance of the DECJ0907 board plays a key role, effectively preventing current leakage and reducing the risk of electrical accidents.

Use and Maintenance

In order to ensure the optimal performance of the DECJ0907 board in the generator, correct installation and maintenance are essential. During the installation process, it should be carried out in strict accordance with the operating specifications to ensure the close integration of the material with the internal components of the generator. At the same time, the insulation materials are regularly inspected and maintained to promptly detect and deal with possible problems, such as aging and damage of the materials, to ensure the long-term safe operation of the generator.

F-grade high-strength laminated glass fiber board DECJ0907, with its excellent performance in heat resistance, mechanical properties and electrical insulation properties, has become the preferred insulation material for power plant generators. It not only improves the operating stability and safety of the generator, but also extends the service life of the equipment, providing a strong guarantee for the efficient and reliable operation of the power plant. In practical applications, the reasonable selection and correct use of DECJ0907 board is of great significance to improving the overall performance of the generator.
