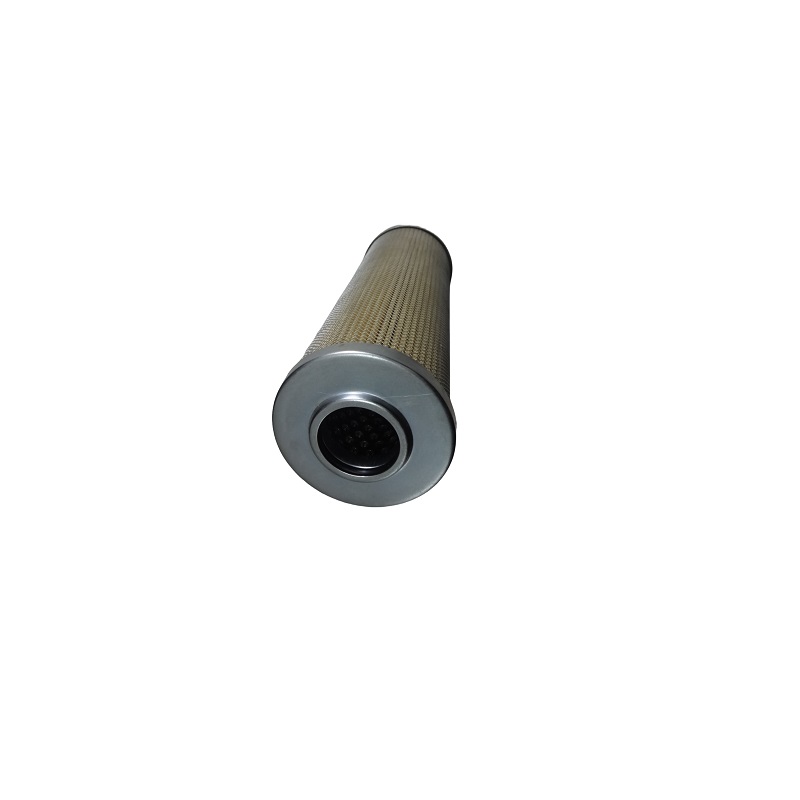

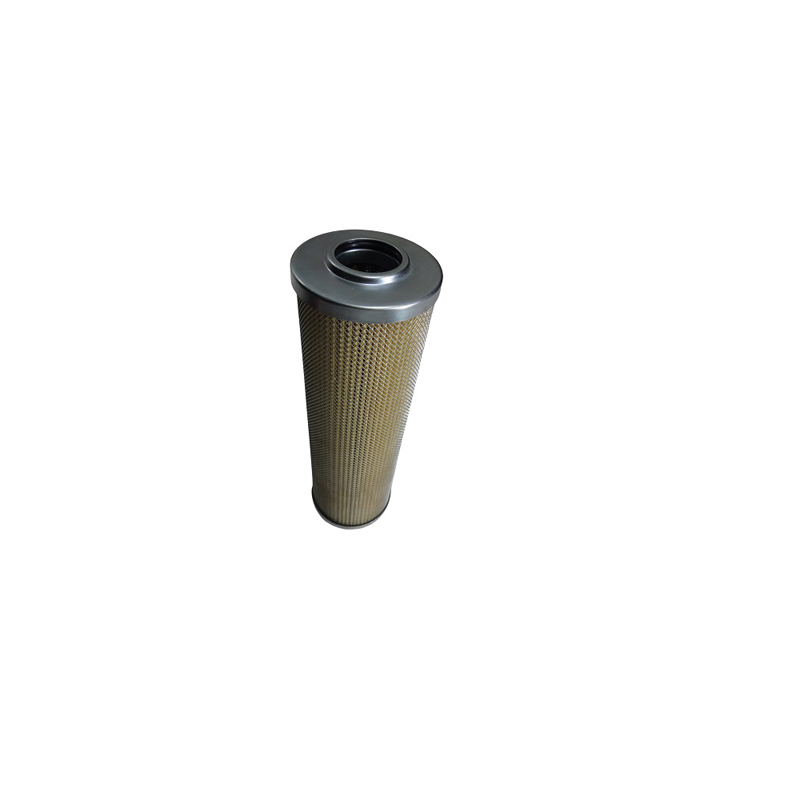

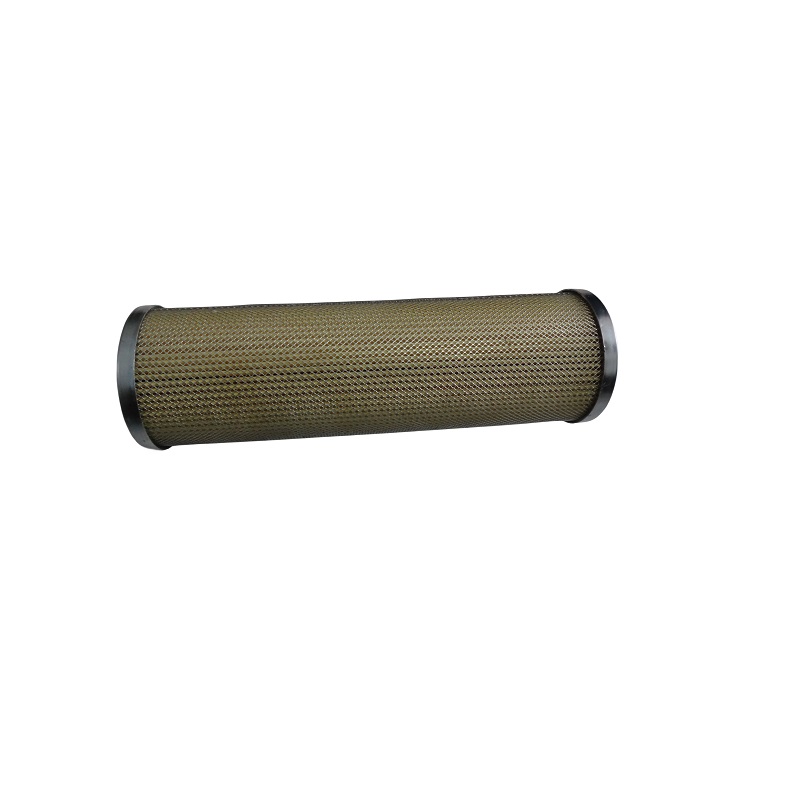

Filter element HDX-630×20Q2 is a commonly used filter component in hydraulic system, mainly used to filter out solid particles and colloidal substances in oil, maintain oil cleanliness, prevent oil pollution, and ensure the normal operation of hydraulic system. The filter element adopts high-quality filter materials and advanced manufacturing technology, with the characteristics of high filtration accuracy, smooth oil flow, good pressure resistance, high chemical stability, etc. It can effectively remove impurities in oil and ensure the efficient operation of hydraulic system.

Technical parameters

- Filtration accuracy: 20 microns. It can effectively filter out impurity particles larger than 20 microns in oil, ensure the cleanliness of oil, and meet the requirements of hydraulic system for oil quality.

- Working pressure: 0.35-0.4MPa. It can withstand the normal working pressure of hydraulic system, ensure stable operation under high pressure environment, and will not cause damage to filter element or decrease of filtration effect due to excessive pressure.

- Flow rate: According to the different requirements of the hydraulic system, the HDX-630×20Q2 filter element is designed to meet the maximum flow rate requirements of the system, ensuring that the oil flows smoothly in the system and will not affect the operating efficiency of the system due to the limitation of the filter element.

Product advantages

(I) High-efficiency filtration performance

The filter element HDX-630×20Q2 uses high-quality filter materials and has a high filtration efficiency. It can effectively remove solid particles, colloids, iron filings, sludge and other impurities in the oil, ensuring the cleanliness of the oil, thereby improving the operating efficiency and reliability of the hydraulic system.

(II) Excellent pressure resistance

The filter element can withstand a working pressure of 0.35-0.4MPa, has good pressure resistance, can operate stably under high-pressure environment, will not cause damage to the filter element or reduce the filtering effect due to pressure fluctuations, and ensure the normal operation of the hydraulic system.

(III) Smooth oil flow

The filter element HDX-630×20Q2 has a reasonable design structure and low oil resistance, which can ensure the smooth flow of oil in the system and will not affect the operating efficiency of the system due to the limitation of the filter element, thereby reducing the energy consumption and operating cost of the system.

(IV) Good chemical stability

The material used in the filter element has good chemical stability, can adapt to different working environments and oil types, and will not react chemically with the oil, thereby ensuring the filtering performance and service life of the filter element.

Filter element HDX-630×20Q2 is widely used in various hydraulic systems, such as engineering machinery, mining machinery, metallurgical equipment, power generation equipment, ship equipment, etc. In this equipment, the filter element can effectively remove impurities in the oil, protect the normal operation of the hydraulic system, extend the service life of the equipment, and reduce the maintenance cost of the equipment.

During use, after the filter element has been used for a period of time, the accumulation of impurities will cause the filter element to be blocked, and it needs to be replaced in time. When replacing the filter element, check whether there are metal particles or debris at the bottom of the filter element. If there are copper or iron scraps, it may indicate that the hydraulic pump, hydraulic motor or valve and other components are damaged or about to be damaged; if there are rubber substances, it may indicate that the hydraulic cylinder seal is damaged. By checking the scraps, you can determine whether the equipment is damaged, so as to perform corresponding maintenance and repairs.

In short, as a high-performance hydraulic oil filter element, the filter element HDX-630×20Q2 provides a strong guarantee for the stable operation of the hydraulic system with its excellent filtering performance and reliable quality. In practical applications, we should correctly select and use the HDX-630×20Q2 filter element according to the working pressure, flow rate and oil cleanliness requirements of the hydraulic system, and regularly maintain and replace it to ensure the normal operation of the hydraulic system and the long-term stable operation of the equipment.
