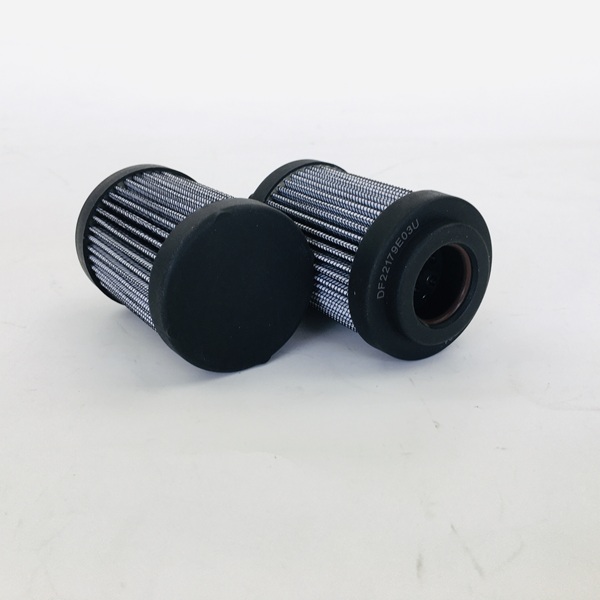

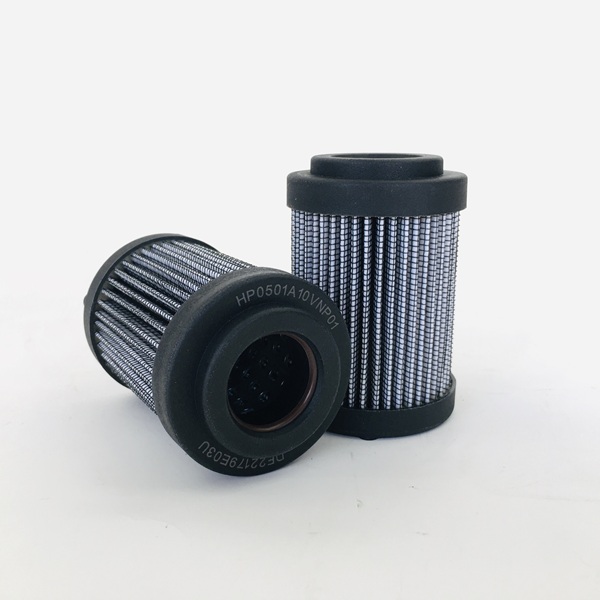

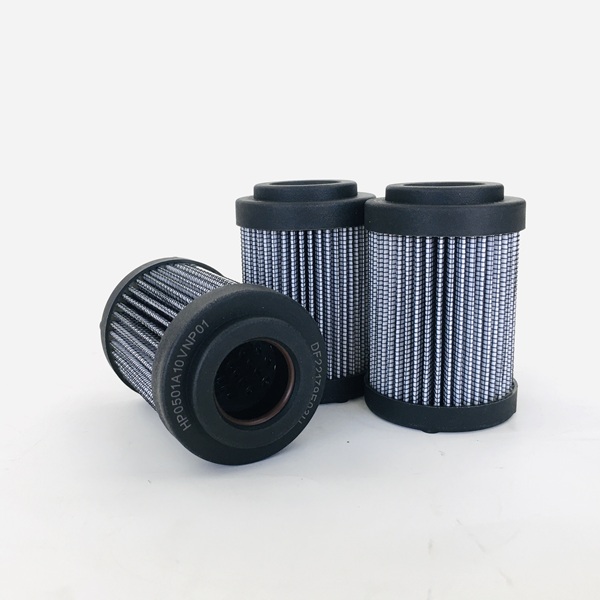

As a special filter device for the inlet of turbine actuators, the HP0501A010VNP01 filter element ensures the cleanliness of the hydraulic system through precision filtration technology, becoming the “invisible guard” for the long-term safe operation of turbines.

The filter element HP0501A010VNP01 is specially designed for the turbine EH (electro-hydraulic control) system and is installed in the hydraulic oil inlet pipeline of the actuator. It mainly undertakes the following functions:

1. Pollutant interception: filter 5-10micron particles in the oil (specific parameters shall be subject to the manufacturer’s data) to prevent metal debris, seal wear particles, etc. from entering the precision servo valve;

2. Oil quality protection: absorb the colloidal substances produced by oil oxidation to slow down the deterioration of oil products;

3. System pressure stabilization: the special structural design can buffer oil pressure fluctuations and reduce the impact on the actuator piston.

Based on the engineering application experience of similar products, this filter element HP0501A010VNP01 may have the following technical highlights:

- Multi-layer gradient filtration structure: using stainless steel woven mesh + glass fiber composite material gradient filtration layer, taking into account both dirt holding capacity and filtration accuracy;

- High pressure tolerance: the design working pressure can reach more than 40MPa, in line with ASTM D5480 high pressure test standard;

- Wide temperature range adaptability: -30℃ to 120℃ working temperature range, suitable for cold start and full load conditions of power plants;

- Anti-seismic design: built-in spiral support skeleton to ensure structural integrity under turbine vibration environment.

The filter element HP0501A010VNP01 plays an irreplaceable role in the following key links of the steam turbine unit:

1. Valve action control: ensure that the cleanliness of the hydraulic oil entering the actuator meets the stringent requirements of the servo valve for NAS 1638 level 6 cleanliness;

2. System failure prevention: According to statistics, about 70% of hydraulic system failures are caused by oil contamination. The filter element can reduce the failure rate of servo jamming, leakage, etc.;

3. Extend the oil change cycle: high-efficiency filtration extends the service life of lubricating oil by 30%-50%, reducing operation and maintenance costs.

Power plant technicians need to focus on:

- Pressure difference monitoring: install a pressure difference sensor, and prompt replacement when the pressure difference between the upstream and downstream of the filter element exceeds 0.35MPa;

- Regular oil inspection: formulate a replacement strategy based on the detection data such as particle count and moisture content;

- Compatibility verification: confirm the chemical compatibility of the filter material with phosphate ester fire-resistant oil or mineral oil.

With the construction of smart power plants, the new generation of filter products is evolving in the following directions:

- State perception integration: built-in sensors realize online monitoring of pollution;

- Green maintainable design: detachable filter structure reduces waste generation;

- Digital twin application: predict remaining service life through operation data simulation.

Filter element HP0501A010VNP01 is the “first line of defense” of the turbine hydraulic system, and its performance directly affects the safety and economy of the unit. It is recommended that users formulate scientific maintenance strategies based on actual working conditions. Against the background of increasing reliability requirements for energy equipment, such high-precision filtration products will continue to create hidden value for the power industry.
