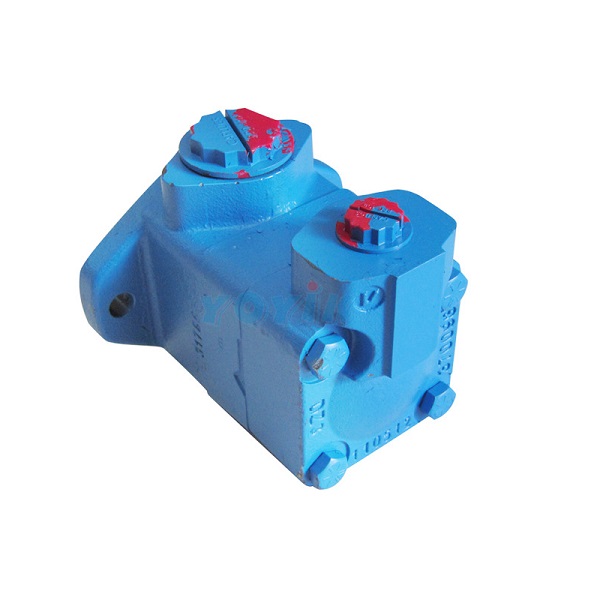

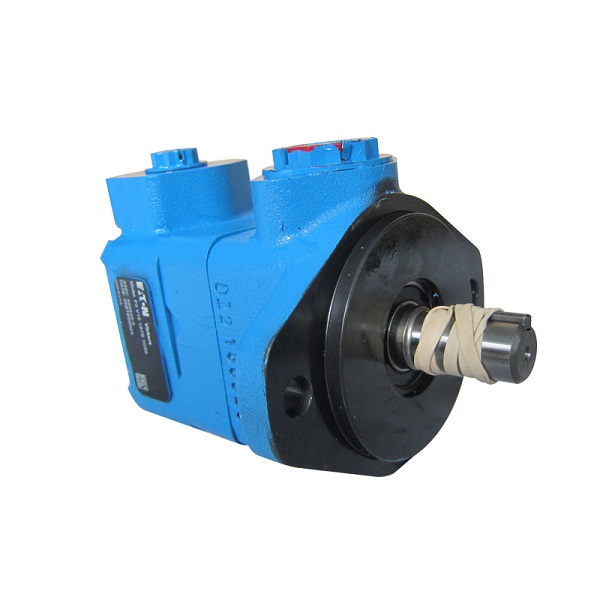

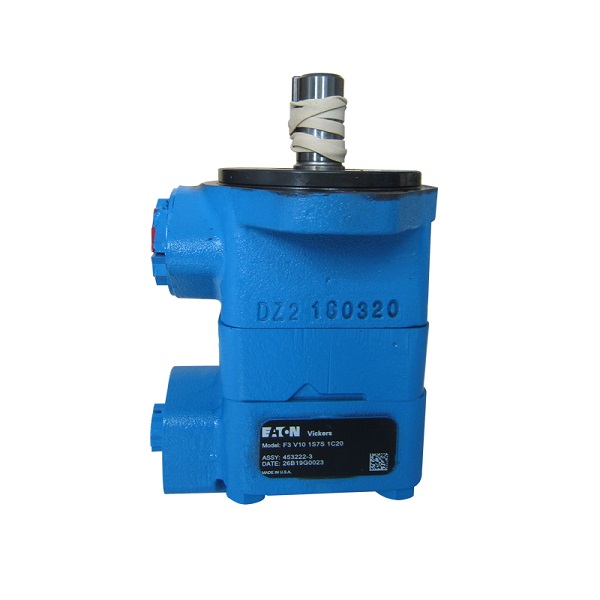

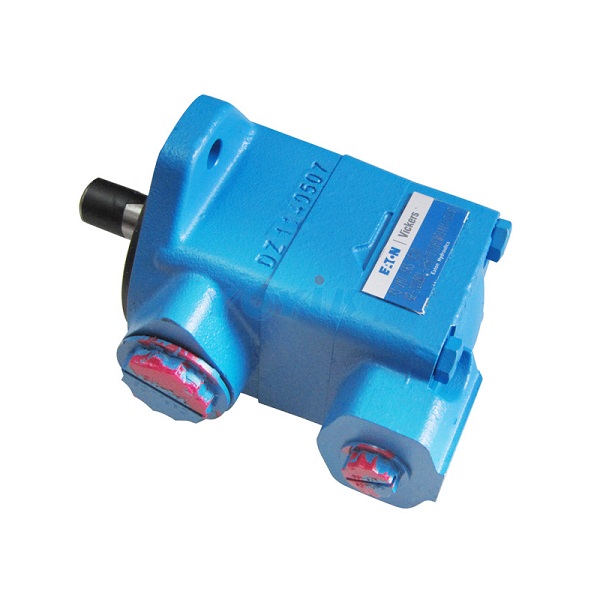

The fire-resistant oil circulation pump F3V10-IS6S-IC-20 is a high-performance hydraulic pump for industrial use, designed for power plant EH oil systems. The pump provides more than 90% volumetric efficiency and a noise level as low as 62dB(A) at an operating pressure of 210bar, ensuring efficient and low-noise operation. Its compact dimensions and high working pressure capability enable it to achieve excellent performance in a limited space. On-site repair by replacing the pump seal can reduce downtime, increase productivity and reduce maintenance costs. The inlet and outlet ports can be oriented in four different relative positions, providing great installation flexibility and facilitating machine design and system integration.

Performance characteristics

- High working pressure and high volumetric efficiency: At an operating pressure of 210bar, the pump provides more than 90% volumetric efficiency, ensuring effective energy conversion and reducing energy waste.

- Low noise operation: The operating noise is as low as 62dB(A), which is suitable for occasions with high requirements for noise control and improves the comfort of the operating environment.

- Compact design and installation flexibility: The compact size and multiple orientations of the inlet and outlet ports enable it to adapt to different installation environments and space constraints.

- Easy maintenance and repair: On-site repair by replacing the pump seal can shorten downtime, improve productivity and reduce maintenance costs.

- Excellent pressure resistance and sealing performance: The use of high-quality seals and advanced manufacturing processes ensures stable operation under high pressure and prevents medium leakage.

Application

The fire-resistant oil circulation pump F3V10-IS6S-IC-20 is widely used in DEH (digital electro-hydraulic control system) or EH (electro-hydraulic control system) of power plants to ensure the circulation of oil in the system, maintain the stability of oil temperature and oil pressure, and prevent oil overheating or oxidation. Its high performance and reliability make it an indispensable key component in industrial hydraulic systems, suitable for occasions with high requirements for efficiency, reliability and quiet operation.

Installation and maintenance

1. Installation points:

- Before installation, ensure that the oil tank and circuit are clean, free of dirt and debris, and the oil tank should be filled with filtered hydraulic oil.

- The liquid level should reach the standard height to prevent the formation of vortices at the pump inlet suction connection.

- If the pump is installed above the liquid level, the pump should be filled with oil through the oil outlet; if the pump is installed below the liquid level, the pump outlet joint can be loosened to allow the oil to expel air.

2. Maintenance suggestions:

- Regularly check the operating status of the pump, including oil pressure, oil temperature, motor temperature, etc., to ensure that the pump is running in good condition.

- Check the sealing performance of the pump to prevent fire-resistant oil leakage.

- Maintain the cleanliness of the pump body to extend the service life of the pump.

- Regularly replace the pump’s sealing components to ensure the sealing and reliability of the system.

The fire-resistant oil circulation pump F3V10-IS6S-IC-20 has become an indispensable key component in industrial hydraulic systems with its excellent performance and reliability. It can not only ensure the efficient circulation and stable pressure of the oil in the system, but also maintain stable performance in various harsh environments, ensuring the safe and stable operation of the equipment. In the future industrial development, with the continuous advancement of technology and the diversification of application needs, the fire-resistant oil circulation pump F3V10-IS6S-IC-20 will continue to play its important role and provide strong support for the stable operation of modern industry.
