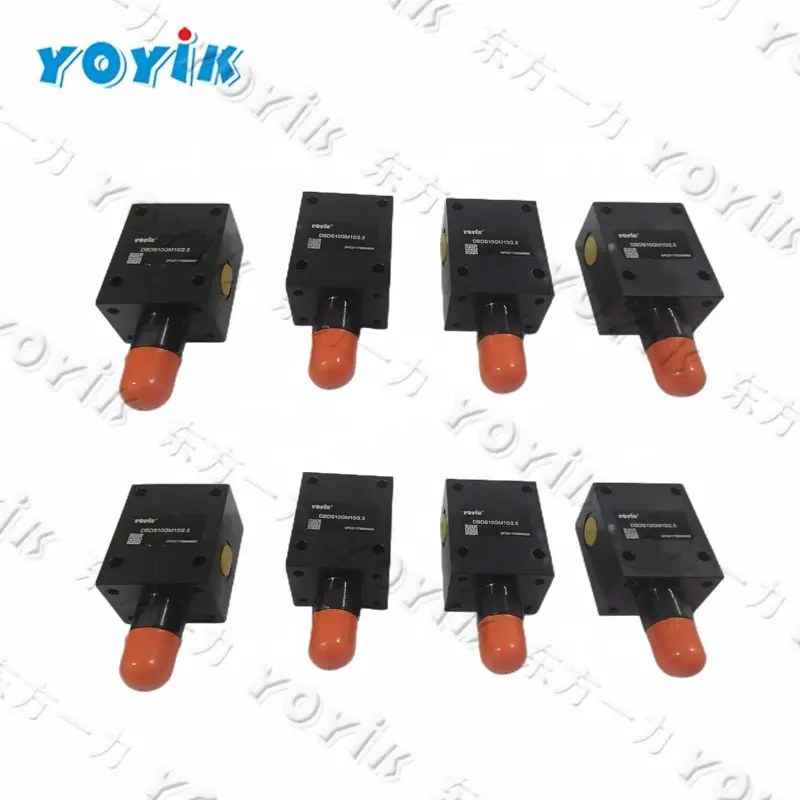

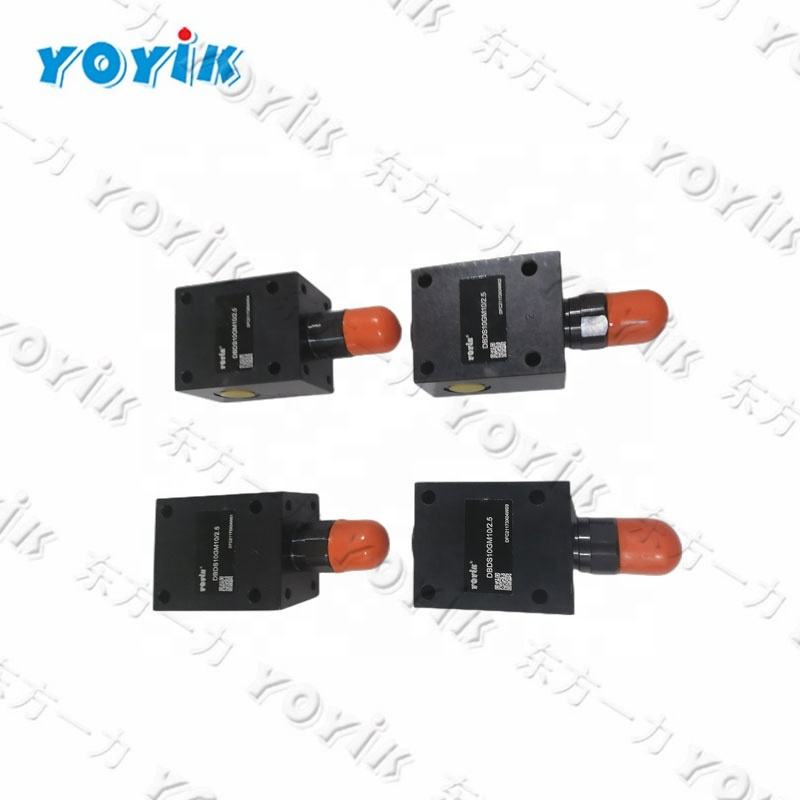

The relief valve DB15G-2-L5X/5/2 is mainly used to control the pressure of the system, using a cast inner flow channel, with strong flow capacity and large flow rate. The structure is simple, with low noise, good opening and closing characteristics, and stable performance.

The relief solenoid valve DB15G-2-L5X/5/2 mainly plays a constant pressure overflow and safety protection role in hydraulic equipment. Constant pressure overflow function: In the throttling and regulating system of the quantitative pump, the quantitative pump provides a constant flow rate. When the system pressure increases, it will reduce the flow demand. At this point, the overflow valve opens, causing excess flow to overflow back into the oil tank, ensuring that the inlet pressure of the overflow valve, i.e. the pump outlet pressure, remains constant (the valve port often opens with pressure fluctuations).

The working principle of the DB15G-2-L5X/5/2 relief valve:

The pressure oil at the oil inlet acts on its bottom through a damping piston, forming a hydraulic pressure that opposes the spring force. When the hydraulic pressure is less than the spring force of the pressure regulating spring, the cone valve closes and this valve does not have a pressure regulating effect. As the inlet pressure continues to increase. When the hydraulic pressure exceeds the spring force, the cone valve opens and excess oil overflows back into the tank, stabilizing the inlet pressure at the set value.

Besides of the DB series relief valve, Yoyik also offers other types of pressure control valves as below:
Safety Valve DB10-2-30/100
Pilot Relief Valve RPGC1AV
Bellows Relief Valve MS50-1
Regulating Valve DBW10B-1-30/315VW110-50NZ4
Sealing Oil Relief Valve DB15G-2-L5X/5/2 ,L05-23031-00003, REVISION:2
EH Oil Pump Relief Valve DBDS6K1X/315
Pressure Relief Valve 3.5A25F-16P
Non-Return Valve BXF-25II
PRESSURE REDUCING VALVE 1 1/2″LOF-98H
Overflow Valve For The EH Regulatory System DB10-1-5X/31.5
Bellows Relief Valve DBEM 10-50/200 YG 24 NZ4M
Direct-Acting Relief Valve BXF-25
Flow Regulating Valve DBDS10GM10/5 3
Throttle Valve DB20G-2-L5X/5U/2
Pressure Relief Valve RV5-16-S-0-50
Flow Regulating Valve 4.5A25
