In harsh environments such as high temperature, vibration, and corrosive media of steam turbines, displacement sensors are prone to signal drift and mechanical wear, which can lead to monitoring failure and even major accidents. With its innovative design and technological breakthroughs, the HTD-50-3 linear displacement sensor provides a new solution for turbine shaft system monitoring. Today, we will analyze in depth how HTD-50-3 achieves long-term stability of turbine shaft system displacement monitoring through multi-dimensional reliability design.

I. Core advantages: the cornerstone of reliability that breaks through traditional limitations

1.1 Non-contact measurement technology: a revolutionary improvement in mechanical life

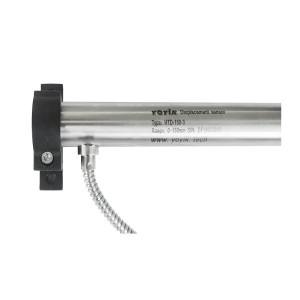

HTD-50-3 adopts an AC-powered LVDT design. There is no physical contact between its core and coil, and displacement signal conversion is achieved through the principle of electromagnetic induction. This design completely eliminates mechanical friction loss, allowing the sensor to maintain a long service life under high-speed rotation of the turbine (and frequent start-stop conditions). Compared with traditional contact sensors, its mechanical failure rate is reduced by more than 90%.

1.2 Extreme environment adaptability: double breakthrough in materials and processes

For the high temperature and high humidity environment of the turbine, HTD-50-3 uses high-temperature alloy as the core material, and uses vacuum brazing technology to achieve sealed packaging of the coil and the shell to ensure stable electrical performance under harsh conditions. Experimental data shows that the linearity error of the sensor is always controlled within ±0.1% in a wide temperature range of -200℃ to 650℃.

1.3 Anti-electromagnetic interference design: reliability guarantee of signal transmission

The electromagnetic environment of the turbine control system is complex. HTD-50-3 uses a three-wire differential signal output, with shielded cables and low-pass filters, to effectively suppress electromagnetic noise interference. Its differential circuit design increases the signal’s anti-interference ability by more than 3 times, ensuring signal stability during the start-up and shutdown of the turbine.

II. Technical details: all-round optimization from principle to engineering

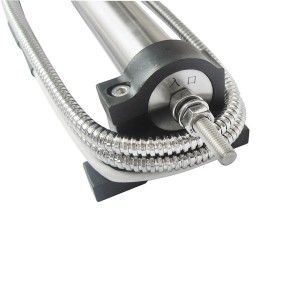

The displacement sensor HTD-50-3 adopts a spring preloaded core design, and ensures linear motion of the core within the full stroke through precision-ground guide holes and wear-resistant coatings. The displacement sensor HTD-50-3 supports quick plug-in and pull-out interfaces and modular design. There is no need to disassemble the turbine shaft system during installation, and the time consumption for a single maintenance is reduced by 70%. Its standardized interface is compatible with a variety of signal conversion modules, supports 4-20mA loop power supply, and adapts to long-distance signal transmission requirements.

III. Application practice: reliability verification from laboratory to industrial site

3.1 Steam turbine valve control: precise feedback ensures load stability

In a 300MW steam turbine unit renovation project, after HTD-50-3 replaced the original contact sensor, the valve opening control accuracy was improved from ±1.5% to ±0.3%, and the load fluctuation rate was reduced by 65%. Its zero point self-calibration function effectively offsets the parameter deviation caused by thermal expansion, ensuring long-term operation stability.

3.2 Shaft system vibration monitoring: early fault warning

By analyzing the displacement signal spectrum output by HTD-50-3, potential faults such as shaft misalignment and bearing wear can be identified. After a power plant adopted this technology, the bearing burnout accident rate dropped by 92% and the maintenance cost dropped by 40%.

IV. Maintenance strategy: long-term management to extend reliability

4.1 Regular calibration and cleaning

It is recommended to perform zero point calibration every quarter and use compressed air to remove oil and metal particles in the coil cavity to prevent short circuit risks.

4.2 Environmental adaptability check

In high temperature seasons, focus on monitoring coil temperature to ensure that the heat dissipation channel is unobstructed; in humid seasons, check the sealing to prevent condensation water from infiltrating.

4.3 Establish a fault database

By recording historical signal fluctuations, maintenance records and other data, a predictive maintenance model is built to achieve the transformation from passive maintenance to active prevention.

Through material innovation, structural optimization and intelligent upgrades, HTD-50-3 LVDT provides a full-stack solution from hardware to software for turbine shaft displacement monitoring. Its non-contact design, extreme environmental adaptability and intelligent diagnostic function not only significantly improve the monitoring accuracy and reliability, but also provide a solid guarantee for the long-term safe operation of the unit.

When looking for high-quality, reliable LVDT displacement sensors, YOYIK is undoubtedly a choice worth considering. The company specializes in providing a variety of power equipment including steam turbine accessories, and has won wide acclaim for its high-quality products and services. For more information or inquiries, please contact the customer service below:
