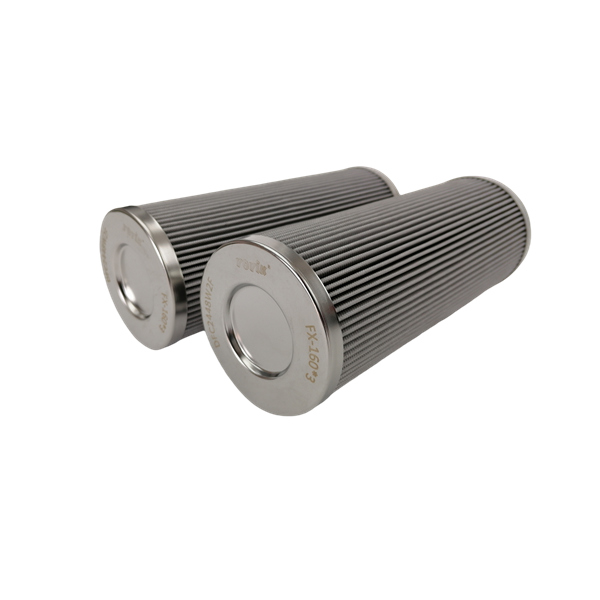

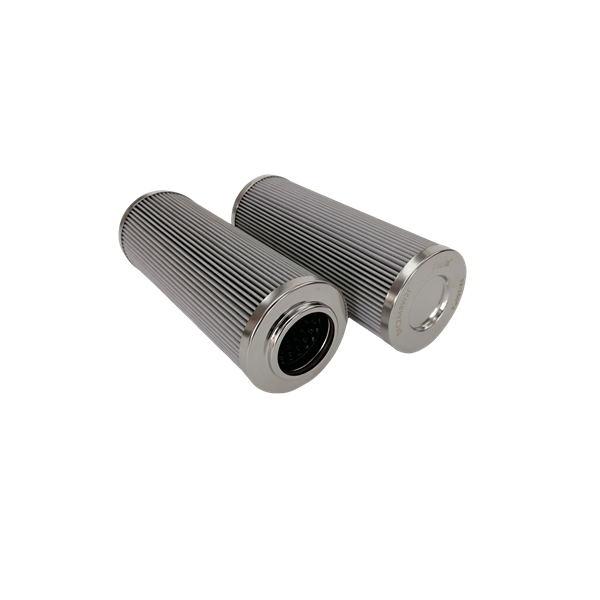

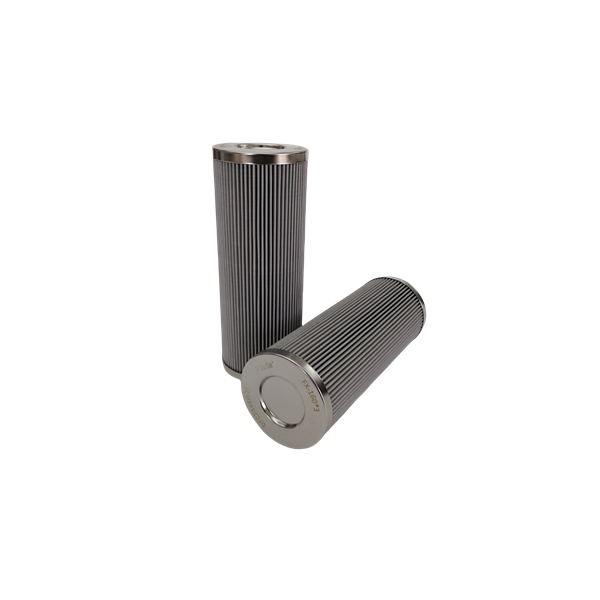

Hydraulic oil filter element FX-160*3 is a high-efficiency filter element designed for steam turbines, generator sets and industrial hydraulic systems. It is mainly used for impurity filtration of lubricating oil, hydraulic oil and other media to ensure the stability and life of equipment operation. The filter element adopts glass fiber filter material and stainless-steel skeleton, has high temperature resistance, acid and alkali resistance, can adapt to complex working conditions, and is widely used in power, metallurgy, mechanical processing and other fields.

Technical parameters

1. Core parameters

-Structural type: winding or folding (process differences between different suppliers).

-Filter material and skeleton: glass fiber filter layer + stainless steel skeleton, with high dirt holding capacity and mechanical strength.

-Filtration accuracy: 10-20 microns (Hydac model is 15μm, some domestic models support 1-80μm customization).

-Working temperature: -20℃ to 130℃ (high temperature resistant model can reach 130℃).

- Maximum pressure difference: 0.4-0.5MPa, some models support high pressure environment.

2. Adaptation system

- Applicable to steam turbine lubrication system, hydraulic control unit, fuel filter device and bypass purification system.

Application

1. Power industry

- Thermal power and nuclear power: used for steam turbine, boiler lubrication system and EH oil system, filter impurities to protect precision valves.

- Wind power: gearbox lubricating oil filtration to reduce mechanical wear.

2. Industrial equipment

- Metallurgical machinery: rolling mill, continuous casting machine hydraulic system filtration.

- Engineering machinery: excavator, injection molding machine hydraulic oil purification.

Maintenance and replacement

- Replacement cycle: usually 3000-5000 hours, which needs to be adjusted according to the oil contamination.

- Installation tips: Make sure the sealing surface is clean to avoid bypass leakage; the filter housing needs to be checked simultaneously when replacing.

Filter element FX-160*3 has become a core component of the lubrication system of steam turbines and industrial equipment due to its high-precision filtration, strong weather resistance and economic advantages. Users can choose imported substitution or domestic customized models according to actual needs, and purchase through formal channels to ensure quality and after-sales service.
