As a high-precision, intuitively displayed liquid level measuring instrument, the magnetic flap level gauge KCY-15/16-530/3/10 plays a vital role in the liquid level monitoring system of power plants. This article will introduce in detail the working principle, structural characteristics, application fields, and specific use and maintenance precautions of this level gauge in power plants.

Product Overview

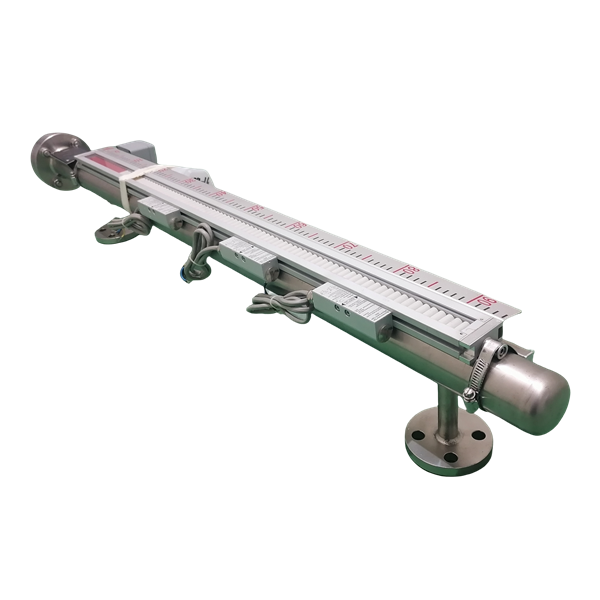

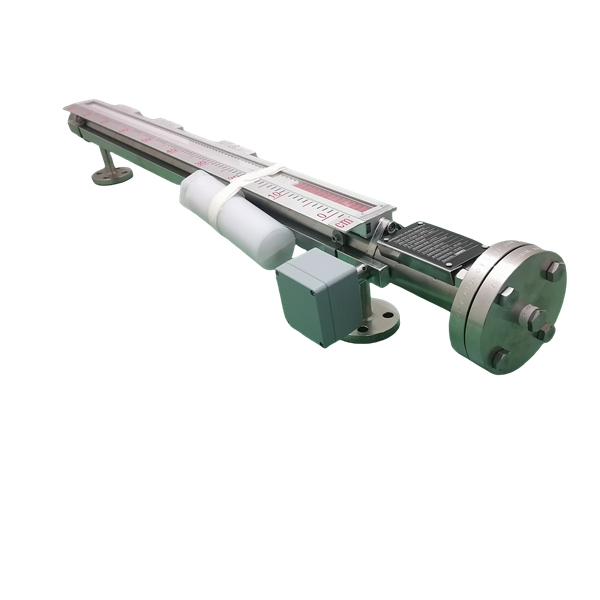

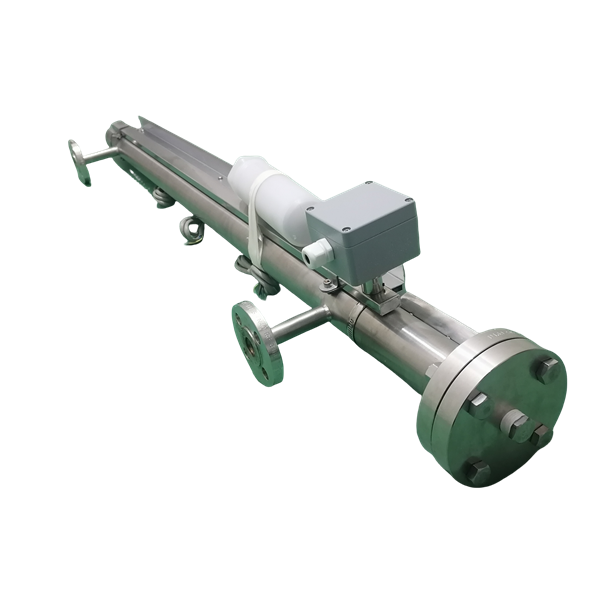

The magnetic flap level gauge KCY-15/16-530/3/10 is a liquid level measuring instrument designed based on the buoyancy principle and the principle of magnetic coupling. The “KCY” in its model may represent the logo of a specific manufacturer or series, “15/16″ may represent a certain specification or size of the instrument, “530″ may represent the measurement range, “3″ may represent the working pressure level, and “10″ may represent other specific parameters or configurations. This level gauge is widely used in various occasions where liquid level monitoring is required, especially in power plants, where the accuracy and stability of liquid level measurement are extremely high.

Working principle

The working principle of the magnetic flap level gauge KCY-15/16-530/3/10 is relatively simple but very effective. When the liquid level in the measured container rises or falls, the float in the main pipe of the instrument also rises or falls. The permanent magnet in the float drives the red and white flip columns in the field indicator to flip 180° through magnetic coupling. When the liquid level rises, the flip column turns from white to red; when the liquid level drops, the flip column turns from red to white. In this way, the red and white boundary positions of the indicator represent the actual height of the medium level in the container, realizing the intuitive display of the liquid level.

Structural features

1. High sealing: The magnetic flap level gauge KCY-15/16-530/3/10 adopts a magnetic coupling isolator closed structure with extremely high sealing performance, which is suitable for flammable, explosive and corrosive and toxic liquid level detection environments.

2. Intuitive display: The instrument intuitively displays the liquid level height by flipping the magnetic column, without the need for additional reading equipment or conversion devices, making liquid level monitoring easier and faster.

3. Remote transmission and control: In addition to local display, the level meter can also cooperate with sensors and transmitters to achieve remote signal transmission, analysis and control.

4. Multiple installation methods: According to the actual needs of the power plant, the magnetic flap level meter KCY-15/16-530/3/10 can provide multiple installation methods such as side-mounted and top-mounted to adapt to different measurement environments and container structures.

The magnetic flap level gauge KCY-15/16-530/3/10 is widely used in power plants, including but not limited to the following aspects:

1. Boiler water level monitoring: In the boiler system of the power plant, accurate monitoring of the water level is crucial to ensure the safe operation of the boiler. The magnetic flap level meter can provide intuitive and accurate water level display, helping operators to take timely measures to prevent boiler dry burning or full water accidents.

2. Tank level measurement: Power plants are usually equipped with various tanks for storing fuel, cooling water and other media. Magnetic flap level gauges can reliably measure the liquid level of these tanks, providing important data support for the material management and operation scheduling of power plants.

3. Wastewater treatment monitoring: In the wastewater treatment system of the power plant, the magnetic flap level gauge can be used to monitor the liquid level of the wastewater treatment tank or sedimentation tank to ensure the smooth progress of the wastewater treatment process.

Precautions for use and maintenance

1. Installation location selection: The magnetic flap level gauge KCY-15/16-530/3/10 should be installed on the side wall or top of the container, and ensure that it is parallel to the contact surface of the container to ensure measurement accuracy. At the same time, avoid the inlet and outlet of the material medium to avoid the rapid changes in the local area of ​​the fluid affecting the measurement accuracy.

2. Regular calibration and maintenance: Although the structure of the magnetic flap level gauge is simple and stable, it still needs to be calibrated regularly to ensure measurement accuracy. Especially in high temperature and high-pressure environments, the accuracy of the level gauge should be checked regularly and impurities in the main pipe should be cleaned.

3. Prevent scaling and clogging: In some working environments, liquids may cause scaling or deposition on the surface of the float or magnetic flap. Regular cleaning and inspection can prevent these substances from affecting the performance of the instrument.

4. Pay attention to safety protection: When maintaining or replacing the magnetic flap level meter, the relevant safety operating procedures should be followed to ensure the safety of the operator. Especially when handling flammable, explosive or toxic media, appropriate protective measures should be taken.

The magnetic flap level gauge KCY-15/16-530/3/10 plays an important role in the liquid level monitoring system of the power plant with its high precision, intuitive display and multiple installation methods. Through proper use and maintenance, the safe operation of the power plant can be ensured and the power generation efficiency can be improved. Therefore, this level meter is one of the indispensable and important equipment in the power plant.
