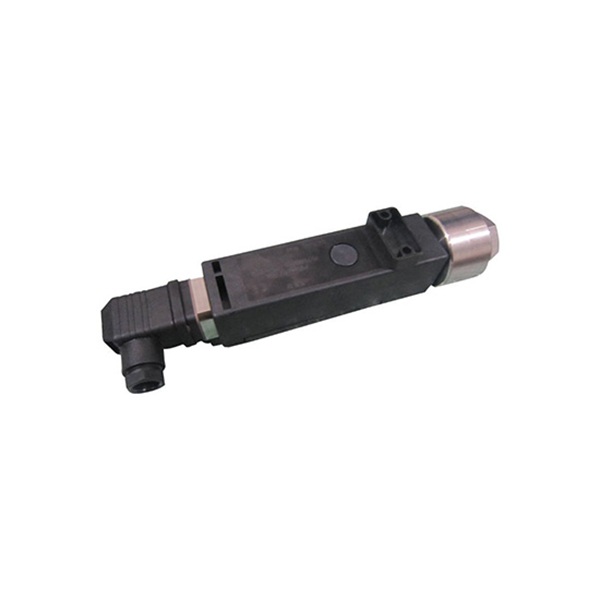

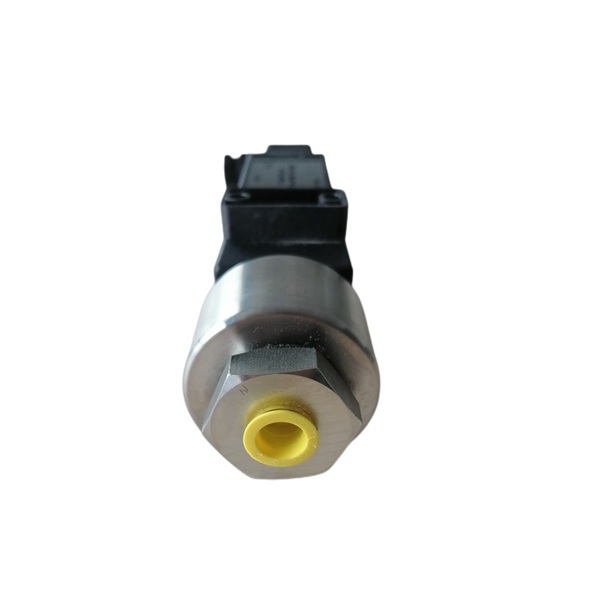

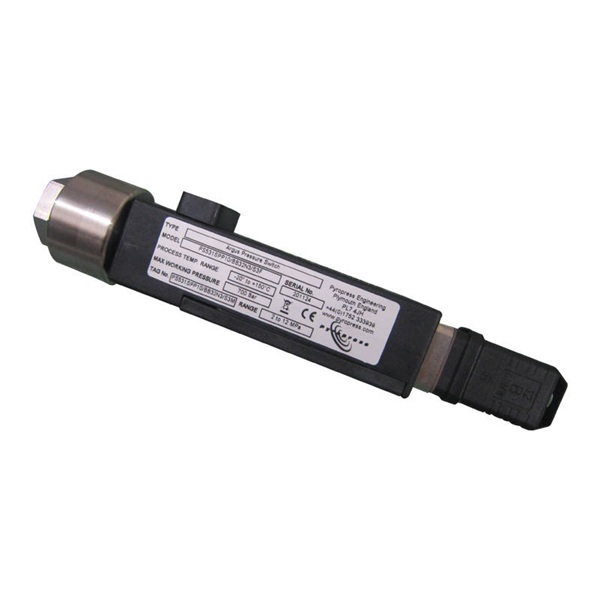

The mechanical pressure switch PS531SPP10-BB32N3-S3M works based on pressure sensing and mechanical triggering mechanism. Its internal core component is a pressure sensing element, which usually adopts a highly sensitive elastic diaphragm, bellows or spring tube. When the pressure medium in the steam turbine-related system acts on the sensing element, the change in pressure will cause the sensing element to deform accordingly. For example, when the pressure increases, the elastic diaphragm will bulge to one side; when the pressure decreases, the diaphragm will return to its original state or sag to the other side. This deformation is transmitted to the micro switch part through a set of mechanical transmission mechanisms, such as connecting rods and levers. When the pressure reaches the preset threshold, the mechanical transmission mechanism will push the contact of the micro switch to act, thereby realizing the connection or disconnection of the circuit and outputting the corresponding electrical signal. This electrical signal can be received by the control system of the steam turbine and used to trigger alarms, control valve opening and closing, or adjust the operating status of the equipment to ensure that the steam turbine operates within a safe and stable pressure range.

Performance Features

1. High-precision pressure monitoring: The mechanical pressure switch PS531SPP10-BB32N3-S3M has excellent pressure measurement accuracy and can accurately sense small changes in pressure in the turbine system. Taking its common pressure measurement range as an example, within the range of 0.8-20psi (pounds per square inch), the accuracy can be controlled at about ±0.8psi, ensuring reliable data support for the evaluation of the operating status of the turbine. This high-precision monitoring capability allows even very slight abnormal fluctuations in pressure to be detected in time during the operation of the turbine, thus buying valuable time for subsequent control and adjustment.

2. Reliable stability: mechanical pressure switch PS531SPP10-BB32N3-S3M uses high-quality materials and precision manufacturing processes to ensure stable performance in complex and changing working environments. Its pressure sensing element has been specially designed and processed to have good anti-fatigue properties. It can always maintain accurate pressure sensing capabilities under long-term pressure changes and is not prone to drift or malfunction. In addition, components such as mechanical transmission mechanisms and micro switches have been carefully selected and optimized, with high reliability and durability, which can effectively reduce the failure of pressure switches caused by component failures, and provide strong guarantees for the long-term stable operation of steam turbines.

3. Flexible setting range: In actual applications, different steam turbine operating conditions have different threshold requirements for pressure monitoring. The mechanical pressure switch PS531SPP10-BB32N3-S3M fully considers this demand and has a more flexible pressure setting range. Users can freely adjust the action threshold of the pressure switch within a certain range according to the specific operating parameters and safety requirements of the steam turbine. For example, by rotating the adjustment knob or using a special setting tool, the pressure setting value can be easily adjusted to a suitable position to meet the personalized needs of pressure monitoring under different operating stages and working conditions.

4. Good adaptability: The working environment of power plants is often harsh, with adverse factors such as high temperature, high humidity, and strong electromagnetic interference. mechanical pressure switch PS531SPP10-BB32N3-S3M fully considers these environmental factors in design and adopts a series of protective measures. Its shell is usually made of solid metal material, with good sealing and corrosion resistance, which can effectively resist the erosion of dust, water vapor and chemicals, and ensure that the internal electronic components and mechanical parts are not affected by the external environment. At the same time, in the circuit design, anti-interference technology is used to enhance the immunity of the pressure switch to electromagnetic interference, ensuring that it can still work stably and accurately in a complex electromagnetic environment.

Application scenarios in steam turbines

1. Lubricating oil system pressure monitoring: The lubricating oil system of the steam turbine is crucial to ensure the normal operation of the rotating parts of the steam turbine. mechanical pressure switch PS531SPP10-BB32N3-S3M is installed in the lubricating oil pipeline to monitor the pressure of the lubricating oil in real time. When the lubricating oil pressure is too low, it may cause serious problems such as bearing wear and equipment damage. At this time, the pressure switch will act quickly and output an electrical signal to the control system of the steam turbine. After receiving the signal, the control system will trigger the alarm device on the one hand to remind the operator to deal with it in time; on the other hand, it may automatically start the standby oil pump to increase the lubricating oil pressure to ensure that the various components of the steam turbine are fully lubricated and avoid failures caused by poor lubrication.

2. Steam system pressure control: The steam system pressure of the steam turbine directly affects the output power and operating efficiency of the steam turbine. The mechanical pressure switch PS531SPP10-BB32N3-S3M is used to monitor the pressure in the steam pipeline. When the steam pressure is too high, it may exceed the tolerance range of the steam turbine equipment, posing a safety hazard; while too low pressure will cause the steam turbine power to drop, affecting the power generation efficiency. Through the real-time monitoring of the steam pressure by the pressure switch, when the pressure deviates from the set normal range, the opening of the steam regulating valve can be controlled in time to adjust the steam flow, thereby stabilizing the steam pressure and ensuring that the steam turbine operates under the best working conditions, which not only improves the power generation efficiency, but also ensures the safe operation of the equipment.

3. Vacuum system pressure monitoring: In the vacuum system such as the condenser of the steam turbine, maintaining a suitable vacuum degree is of great significance to improving the thermal efficiency and operating stability of the steam turbine. mechanical pressure switch PS531SPP10-BB32N3-S3M can be used to monitor the pressure changes of the vacuum system. When the vacuum drops, that is, the pressure increases, the pressure switch will send a signal to prompt the operator to check whether there are leaks in the vacuum system, and take appropriate measures to repair it in time to restore the normal pressure of the vacuum system and ensure the efficient operation of the steam turbine.

The mechanical pressure switch PS531SPP10-BB32N3-S3M has become an indispensable and important equipment for ensuring the safe and stable operation of the steam turbine due to its unique working principle, excellent performance characteristics and important application in the key systems of steam turbines. In the future, with the continuous advancement and development of technology, it is believed that such pressure switches will continue to be optimized and upgraded to provide more reliable and accurate monitoring and control services for the operation of steam turbines in power plants.
