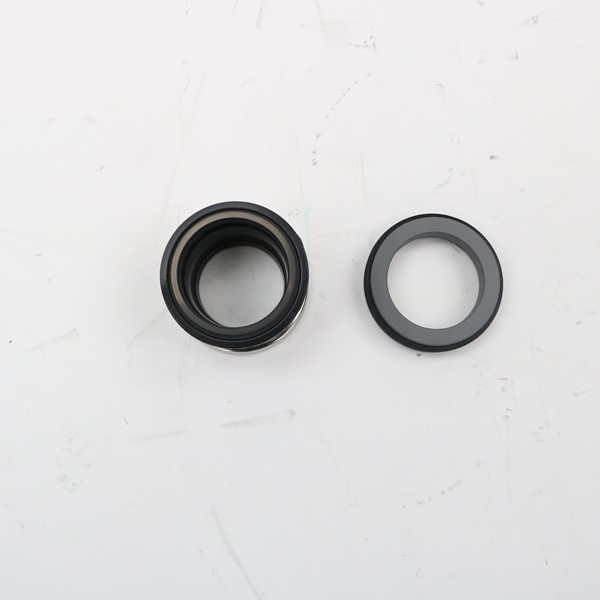

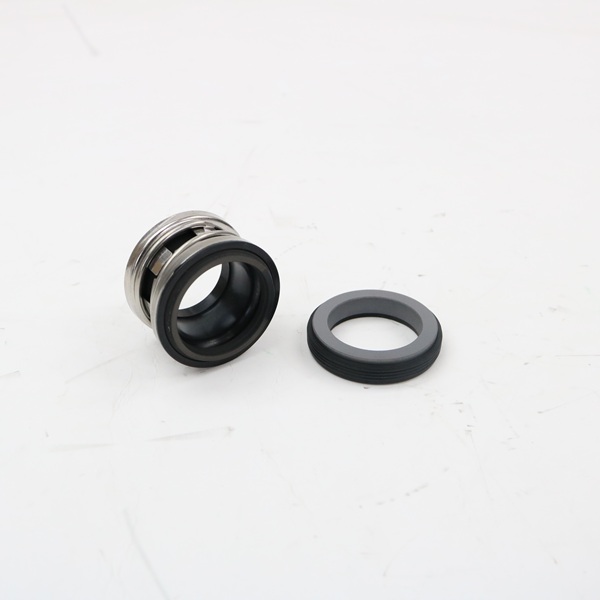

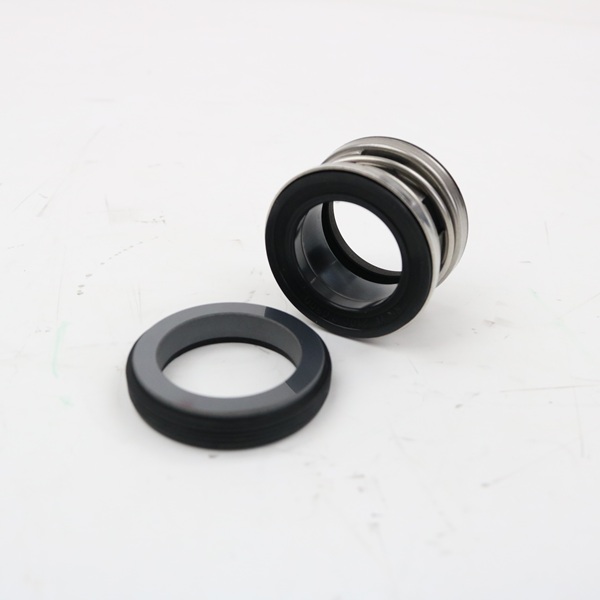

The mechanical seal HSG120X4-42 is mainly composed of dynamic ring, static ring, elastic element (such as spring) and auxiliary seal. The dynamic ring is closely connected with the rotating shaft of the screw oil pump and rotates with the shaft; the static ring is fixed on the pump body and forms a relatively static sealing end face with the dynamic ring. When the screw oil pump starts running, under the action of the elastic element, the sealing end faces of the dynamic ring and the static ring fit each other to form a tight sealing defense line to prevent oil from leaking from the gap between the pump shaft and the pump body. At the same time, auxiliary seals (such as O-rings, etc.) further enhance the sealing effect and prevent oil from leaking from other possible gaps.

Performance characteristics

1. High sealing reliability: The mechanical seal HSG120X4-42 adopts advanced sealing design and high-quality sealing materials, which can effectively prevent oil leakage within the working pressure range of the screw oil pump and ensure the efficient operation of the pump. Its sealing performance is stable and can adapt to the needs of long-term continuous work, reducing production interruptions and energy waste caused by leakage.

2. Good wear resistance: Considering that the oil delivered by the screw oil pump may contain impurity particles, the sealing end face of HSG120X4-42 is made of materials with excellent wear resistance, such as silicon carbide, cemented carbide, etc. These materials have high hardness, high strength and good corrosion resistance, which can effectively resist the erosion and wear of impurities in the oil, extend the service life of the mechanical seal, and reduce the maintenance cost of the equipment.

3. Adapt to a variety of working conditions: The mechanical seal can adapt to working environments with different temperatures, pressures and speeds. Whether in harsh working conditions of high temperature and high pressure or in conventional working conditions of low temperature and low pressure, it can maintain good sealing performance. It has a wide range of applicable temperature and can withstand a certain degree of temperature fluctuations, meeting the application requirements of screw oil pumps in various industrial scenarios.

4. Convenient installation and maintenance: The mechanical seal HSG120X4-42 has a reasonable structural design and a relatively simple installation process, which is convenient for operators to install and debug. At the same time, in terms of maintenance, its parts are easy to disassemble and replace. When the sealing parts are worn or damaged, they can be repaired quickly, reducing equipment downtime and improving production efficiency.

Application scenarios in screw oil pumps

1. Petrochemical industry: In the process of oil refining and chemical production, screw oil pumps are often used to transport various petroleum products, chemical raw materials, etc. The mechanical seal HSG120X4-42 can effectively seal these oils with different characteristics, prevent the leakage of flammable, explosive, toxic and harmful media, ensure production safety, and avoid environmental pollution. For example, when transporting crude oil, lubricating oil, solvent oil and other oil products, the mechanical seal can play an excellent sealing role.

2. Power industry: Some equipment in power plants, such as steam turbines and generators, require screw oil pumps to provide sealing oil to ensure the normal operation of the equipment. With its stable performance, the mechanical seal HSG120X4-42 can provide reliable sealing for the screw oil pumps of these equipment, ensure the stability of the sealing oil pressure, and prevent oil leakage from causing equipment failure, thereby ensuring the continuity and stability of power production.

Common faults and solutions

1. Leakage problem: If oil leakage occurs, it may be caused by wear of the seal end face, aging or damage of the auxiliary seal, improper installation, etc. The solution includes checking the wear of the seal end face, replacing the dynamic ring and static ring in time if necessary; checking the auxiliary seal, replacing aging or damaged O-rings, etc.; rechecking the installation process to ensure that the mechanical seal is installed correctly and the components are tightly connected.

2. Overheating phenomenon: Overheating of the mechanical seal may be caused by poor lubrication, excessive pressure on the sealing surface, excessive pump speed, or excessive medium temperature. The overheating problem can be solved by checking the lubrication system to ensure that the sealing part is fully lubricated; adjusting the pressure on the sealing surface to the appropriate range; reasonably adjusting the pump speed according to the actual working conditions; cooling the medium, etc.

3. Abnormal wear: In addition to the impurity particles in the oil causing abnormal wear, excessive vibration of the shaft may also cause abnormal wear of the mechanical seal. At this time, it is necessary to check the concentricity and verticality of the shaft, repair or replace the problematic shaft parts, and filter the oil to remove impurities to reduce the wear on the sealing parts.

Mechanical seal HSG120X4-42 plays a vital role in the operation of the screw oil pump. Understanding its structure, performance, application scenarios and solutions to common faults is of great significance to ensure the stable operation of the screw oil pump and improve industrial production efficiency. In actual use, users should choose appropriate mechanical seals according to specific working conditions and do a good job of daily maintenance to give full play to its performance advantages and extend the service life of the equipment.
