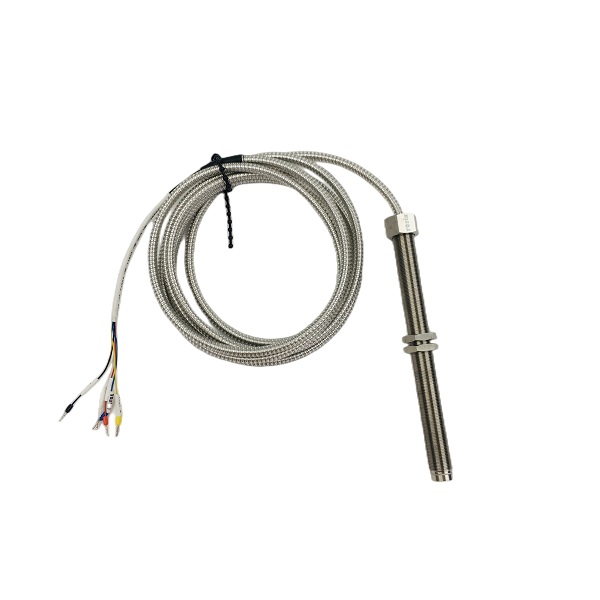

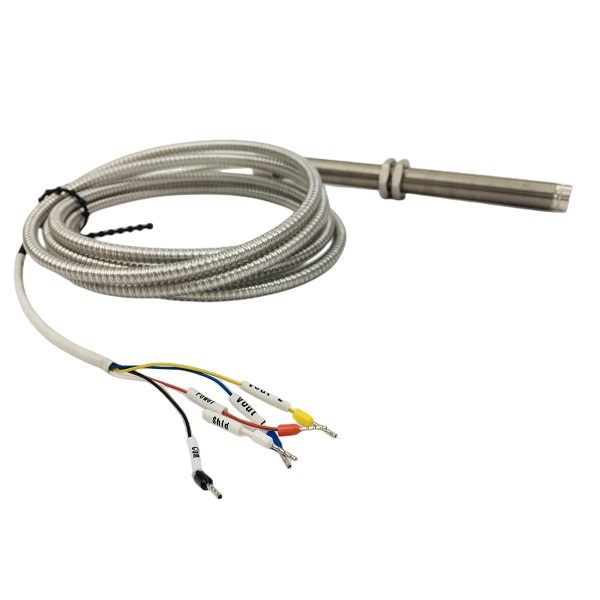

As a high-performance speed measurement device, the passive magnetoelectric speed sensor RS9001-01-00-08-05 is designed for high-speed rotating machinery such as steam turbines, providing a high-precision and high-reliability solution for speed monitoring.
Working principle
The passive magnetoelectric speed sensor RS9001-01-00-08-05 works based on the principle of electromagnetic induction. The sensor contains a magnet and a coil of wire. When the object to be measured (such as gears, impellers, etc.) rotates, the magnetic field generated by the magnet passes through the coil and generates a voltage in the wire. The frequency of the voltage signal is proportional to the speed of the object to be measured, thereby achieving accurate measurement of the speed. This principle enables the sensor to measure without contact, avoiding mechanical wear and interference, and ensuring long-term stable measurement performance.
Passive magnetoelectric speed sensor RS9001-01-00-08-05 is widely used in multiple industrial fields, including but not limited to the following industries:
- Industrial machinery: In the manufacturing industry, it is used to monitor and control the operation of motors, fans, pumps and other mechanical equipment.
- Automotive industry: In automobiles, it is used to measure the engine speed to provide to the ECU (electronic control unit) for fuel injection and ignition control.
- Wind power generation: In wind turbines, it is used to monitor and control the speed of the wind wheel to optimize the power generation efficiency.
- Rail transit: In rail transit systems such as trains and subways, it is used to monitor the speed of the wheel axle to ensure the smooth and safe operation of the train.
- Steam turbine: It is used to measure the speed of the steam turbine to ensure that it operates within a safe and efficient range.
Installation and maintenance
When installing the passive magnetoelectric speed sensor RS9001-01-00-08-05, it is necessary to ensure that the sensor is well aligned with the object to be measured to ensure the accuracy of the measurement. The installation location should avoid interference from strong magnetic fields and strong currents to ensure the normal operation of the sensor. During maintenance, the connection parts and sealing performance of the sensor should be checked regularly, and dust and foreign matter should be cleaned in time to ensure its reliable operation in harsh environments.
Product Features
- Non-contact measurement: no contact with the rotating parts being measured, no wear, and long service life.
- Strong anti-interference performance: Adopting the principle of magnetoelectric induction, no external working power supply is required, the output signal is large, and the anti-interference performance is good.
- Adapt to harsh environments: It can work stably in harsh environments such as smoke, oil and gas, and water vapor, and has good environmental adaptability.
- Easy installation: The structure is simple and reliable, with high vibration and impact resistance, and it is extremely convenient to install and use.
In short, the passive magnetoelectric speed sensor RS9001-01-00-08-05 has become an important tool for speed measurement and control in modern industry with its excellent performance, wide application fields and good environmental adaptability. By accurately measuring the speed, it provides a strong guarantee for the safe, stable and efficient operation of the equipment. In practical applications, the correct installation, use and maintenance of the sensor can ensure its long-term stable operation and optimal performance.
