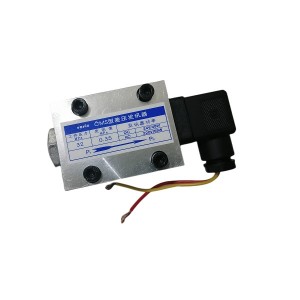

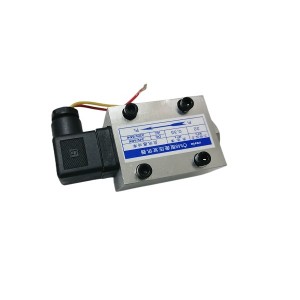

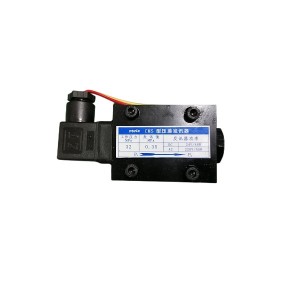

In modern industrial hydraulic systems, oil cleanliness is directly related to equipment life and operational safety. When the filter element is gradually clogged due to impurity accumulation, the differential pressure transmitter CMS-I becomes the “first line of defense” to ensure the stable operation of the system with its precise monitoring and immediate warning functions.

1. The “nerve endings” of differential pressure monitoring: the working principle of CMS-I

The CMS-I differential pressure transmitter evaluates the filter element status in real time by sensing the pressure difference changes at the inlet and outlet of the oil filter. When the contaminants in the oil gradually clog the filter element, the inlet and outlet pressure difference continues to increase. Once the pressure difference reaches the preset threshold, the piston inside the transmitter triggers the switch action under the pressure push, and the red indicator button pops up at the same time, forming a “visual + electrical signal” dual alarm mechanism. This design not only reduces the risk of system failure caused by filter element failure, but also provides intuitive maintenance guidance for operators.

From the internal structure, CMS-I consists of a piston, a magnet, a spring and a contact assembly. Under normal conditions, the piston is close to the oil inlet side, and the red button is sucked into the transparent window; when the pressure difference exceeds the standard, the piston moves to the oil outlet side, compresses the spring and activates the contact, the normally open point turns to a closed state, and the button pops up to form a mechanical alarm. This combination of mechanical and electronic signals ensures the reliability of the alarm – even if the circuit fails, the visual signal can still take effect.

2. Multiple protection mechanisms: Why can CMS-I become the “first line of defense”?

Early warning, prevent trouble before it happens

Once the hydraulic system causes a sudden increase in pressure due to filter element blockage, it may cause serious accidents such as pump damage and pipeline burst. CMS-I monitors the pressure difference change in real time and issues an early warning at the beginning of filter element blockage, leaving sufficient processing time for maintenance personnel. For example, in a hydraulic station of a steel enterprise, CMS-I warned of filter element blockage 3 days in advance, avoiding hydraulic valve group failure caused by oil contamination, and directly reducing downtime losses by more than 500,000 yuan.

High reliability design, adaptable to complex working conditions

CMS-I adopts modular design, supports multiple alarm modes such as visual and electrical signals, and can be customized according to system pressure and temperature. Its internal magnetoelectric coupling technology effectively avoids electromagnetic interference, and the contact capacity covers the diversified needs of AC220V/0.25A to DC30V/2A, meeting the application scenarios from small engineering machinery to large ship hydraulic systems.

A cement plant hydraulic station once failed to replace the filter element for a long time, which eventually caused the hydraulic pump to burn out. After analysis, it was found that the piston of the transmitter was stuck by oil mud, and no regular reset verification mechanism was set. This incident prompted the industry to strengthen the maintenance specifications of CMS-I:

Regular calibration: It is recommended to check the button reset function every quarter to ensure that the mechanical alarm channel is unobstructed;

Intelligent monitoring upgrade: Connect a temperature sensor in series with the transmitter contact, and automatically lock the alarm signal when the ambient temperature is abnormal to avoid false alarms;

Filter element life management: Combine the pressure difference-time curve to analyze the filter element attenuation trend and achieve preventive replacement.

Although the pressure differential transmitter CMS-I is small in size, it carries the “lifeline” of hydraulic system safety. Through continuous technological innovation and standardized operation and maintenance, this “first line of defense” is shifting from passive warning to active protection, providing a solid guarantee for the continuous and stable operation of industrial equipment. As a construction machinery manufacturer said: “CMS-I is not only an alarm device, but also our intelligent partner in fighting equipment failures.”

When looking for high-quality, reliable differential pressure transmitters, YOYIK is undoubtedly a choice worth considering. The company specializes in providing a variety of power equipment including steam turbine accessories, and has won wide acclaim for its high-quality products and services. For more information or inquiries, please contact the customer service below:
