In the huge and complex system of thermal power plants, the coal transportation system is like the blood vessels of the human body, continuously providing fuel for the boiler. However, this “lifeline” also hides risks. Belt deviation, material blockage, accidental involvement of personnel… Any small fault may develop into a major safety accident. Therefore, as the last line of defense for the emergency shutdown of the coal transportation system, the importance of the pull-rope switch is self-evident. This article will explore in depth how the ELAW-3 pull-rope switch, a guardian widely used in thermal power plants, can escort safe production with its powerful mechanical structure and precise installation position.

1. ELAW-3 pull-rope switch: the safety guard of the coal transportation system in thermal power plants

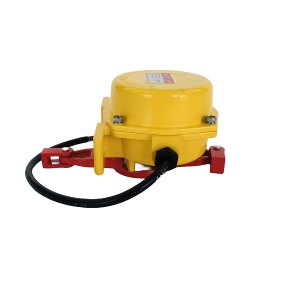

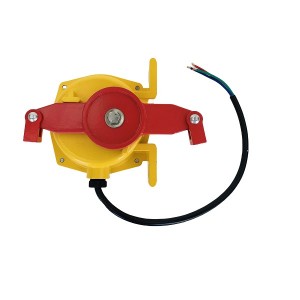

The ELAW-3 pull-rope switch is an emergency shutdown device, usually installed on both sides of the conveyor belt. When the conveyor belt is abnormal or personnel are in danger, just pull the wire rope arranged along the line to trigger the switch, so that the conveyor belt stops running immediately to prevent the accident from expanding. Compared with the traditional emergency stop button, the pull-rope switch has a wider protection range, faster response speed, and can more effectively protect the safety of personnel and equipment.

2. Mechanical structure strength: The solid body of ELAW-3

The reason why ELAW-3 pull rope switch can work stably and reliably in harsh industrial environments is due to its well-designed mechanical structure and sturdy and durable materials.

1. Shell material: The shell of ELAW-3 is usually made of high-strength aluminum alloy or stainless steel. Aluminum alloy shell has the advantages of light weight, high strength, corrosion resistance, etc., and can effectively resist external impact and corrosion. Stainless steel shell is more suitable for humid and more corrosive environments and has a longer service life.

2. Protection level: ELAW-3 pull rope switch usually has a higher protection level, such as IP65 or IP67. The IP (Ingress Protection) level is an international standard for measuring the dust and water resistance of electrical equipment. IP65 means that the equipment is completely protected from dust ingress and can withstand low-pressure water jets; IP67 means that the equipment is completely protected from dust ingress and can be immersed in one meter of water for 30 minutes without being affected. The high protection level ensures that ELAW-3 can still work reliably in harsh environments such as dust and moisture.

3. Internal structure: The internal structure of ELAW-3 is exquisitely designed. Key components such as contacts and springs are made of high-quality materials and have undergone rigorous testing. The contacts are usually made of silver alloy material, which has good conductivity and wear resistance and can withstand frequent switching operations. The springs are specially treated to have good elasticity and fatigue resistance, ensuring that the switch can still maintain sensitive triggering performance during long-term use.

4. Anti-vibration design: The coal transportation system of a thermal power plant will vibrate during operation, which puts higher requirements on the pull-rope switch installed on the conveyor belt. ELAW-3 usually adopts special anti-vibration design, such as adding fixing bolts and using shock-absorbing pads, to reduce the impact of vibration on the switch and ensure that it can still work stably and reliably in a vibrating environment.

5. High temperature resistance: In some high-temperature areas, such as coal transportation systems near boilers, pull-rope switches need to have good high temperature resistance. ELAW-3 usually uses high-temperature resistant materials and special heat treatment processes to enable it to work stably and for a long time in a high-temperature environment without deformation or damage due to high temperature.

3. Installation position adaptability: the key to ELAW-3 precise protection

The installation position of the ELAW-3 pull-rope switch directly affects its protection effect and service life. Reasonable installation positions should follow the following principles:

1. Evenly arranged along both sides of the conveyor belt: The pull-rope switch should be evenly arranged along both sides of the conveyor belt to ensure that the switch can be easily triggered at any position of the conveyor belt. The distance between two adjacent switches should be determined according to the actual situation on site, and it is generally recommended not to exceed 20 meters.

2. Moderate installation height: The installation height of the pull-rope switch should be moderate, and it is generally recommended to be 1.2 meters to 1.5 meters from the ground. Too high or too low will affect the operator’s pulling operation and reduce the trigger sensitivity of the switch.

3. Avoid obstacles: The installation position of the pull-rope switch should avoid obstacles on the conveyor belt, such as rollers, sweepers, etc., to ensure that the pull rope can be pulled smoothly without being stuck or entangled.

4. Consider environmental factors: When installing the pull-rope switch, the environmental factors on site should also be considered. For example, in areas with high dust content, switches with higher protection levels should be selected and cleaned and maintained regularly; in areas with humidity or corrosive gases, corrosion-resistant switches should be selected and corresponding anti-corrosion measures should be taken.

5. Tension of the pull rope: The tension of the pull rope installation should be moderate. Too loose will lead to insensitive triggering, and too tight will lead to false triggering and unnecessary stress on the switch structure. Usually, it is necessary to ensure that the pull rope has a small margin in the natural drooping state, but ensure that the switch can be quickly triggered when slightly pulled.

6. Fixing method: The ELAW-3 pull rope switch is usually fixed by bolts or welding. Bolt fixing is convenient for disassembly and maintenance, and is suitable for occasions where switches need to be adjusted or replaced frequently; welding fixing is more solid and suitable for occasions with large vibration.

7. Clear identification: A striking safety sign should be set near the pull rope switch to remind operators to pay attention to safety and be able to quickly find and use the pull rope switch in an emergency.

ELAW-3 pull-rope switch plays a vital role in the coal handling system of thermal power plants with its strong mechanical structure, reliable performance and flexible installation method. Through reasonable selection, installation and maintenance, ELAW-3 can effectively prevent and reduce safety accidents in the coal handling system, ensure the safety of personnel and equipment, and improve the operating efficiency of power plants. In the future development, with the continuous advancement of technology, pull-rope switches will be more intelligent and networked, providing more comprehensive protection for the safe production of thermal power plants. Choosing ELAW-3 means choosing safety, choosing peace of mind, and choosing respect for life.

When looking for high-quality, reliable pull-rope switches, YOYIK is undoubtedly a choice worth considering. The company specializes in providing a variety of power equipment including steam turbine accessories, and has won wide acclaim for its high-quality products and services. For more information or inquiries, please contact the customer service below:
