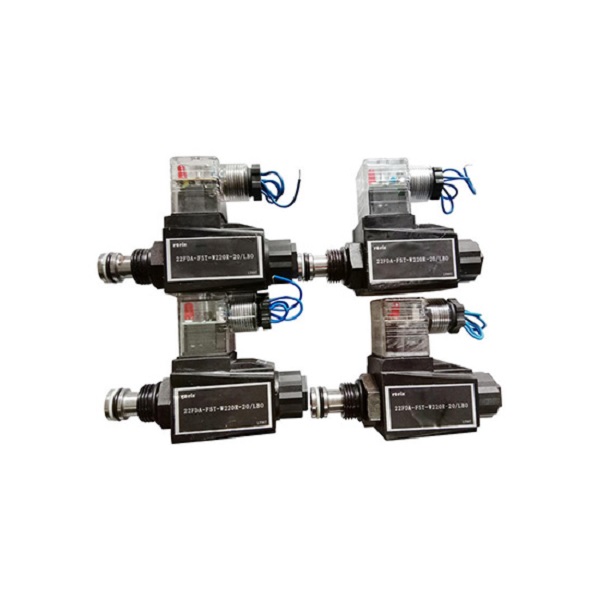

22FDA-F5T-W220R-20LBO solenoid valve is a 2-position 2-way direct-acting solenoid valve, which is applicable to the control of liquid and gas.

Main features of 22FDA-F5T-W220R-20LBO solenoid valve

Direct-acting structure, simple structure and reliable operation.
Made of stainless steel, it has corrosion resistance and is suitable for various media.
Installation is convenient, and different installation methods can be adopted according to different installation environments and requirements.
It is applicable to the control of liquid, gas and steam, and is widely used in industrial automation control systems.
In short, 22FDA-F5T-W220R-20LBO solenoid valve is a 2-position 2-way direct-acting solenoid valve with stable performance, convenient installation and wide application range, which can meet the control requirements of liquid, gas and steam in industrial automation control system.

Correct installation of 22FDA-F5T-W220R-20LBO solenoid valve

The correct installation steps of 22FDA-F5T-W220R-20LBO solenoid valve are as follows:
Confirm whether the model and specification of the solenoid valve meet the requirements, and check whether the appearance of the solenoid valve is intact.
According to the installation requirements, select the appropriate installation position and installation method, and ensure the tightness of the connection between the solenoid valve and the pipeline.
Clean the inside of the pipeline and remove impurities and dirt in the pipeline.
Select appropriate connectors and seals according to the connection mode of solenoid valve and pipeline to ensure the quality of connectors and seals.
Connect the solenoid valve with the pipe, tighten the nut and use a wrench to reinforce it, but do not over tighten it.
Connect the power line of the solenoid valve and pay attention to whether the power voltage is consistent with the rated voltage of the solenoid valve.
Conduct water leakage test and opening test of the solenoid valve to ensure the normal operation of the solenoid valve.
After the installation of the solenoid valve, flush and exhaust the pipeline to ensure that there are no bubbles and dirt inside the pipeline.
The above is the correct installation procedure of solenoid valve. Please read the product manual carefully and follow the installation requirements and operation specifications during installation. In case of any doubt or uncertainty, consult relevant professionals or manufacturer’s technical support.

Common faults of 22FDA-F5T-W220R-20LBO solenoid valve

Solenoid valve may have the following common faults:
Water leakage of solenoid valve: if the solenoid valve is poorly sealed or the interface is damaged, it may cause water leakage. In this case, it is necessary to check whether the seal ring of the solenoid valve is in good condition and replace the damaged seal in time.
The electromagnet cannot be closed: There may be many reasons for the electromagnet to be closed, such as unstable power supply voltage, open circuit of solenoid valve coil, magnetic loss of iron core, etc. In this case, it is necessary to check whether the electromagnet and solenoid valve coil are normal and replace the damaged parts in time.
The solenoid valve is stuck: if the solenoid valve is stuck, the pipeline may be blocked or the normal flow may not be possible. In this case, it is necessary to check whether the solenoid valve is jammed by sundries, or whether there is mechanical failure, and timely clean or repair.
Excessive noise of solenoid valve: solenoid valve may make noise during operation, but excessive noise may affect the use experience. In this case, it is necessary to check whether the solenoid valve is in the correct working state, such as whether the solenoid valve is firm and sealed well.
Frequent damage of solenoid valve: if the solenoid valve is frequently damaged, it may be due to poor use environment or poor quality of solenoid valve. In this case, it is necessary to replace high-quality solenoid valves in time and keep the use environment clean and dry.
